Husqvarna YTH 2548 A (954571984) (2004-06) Ride Mower

Model: YTH 2548 A (954571984) (2004-06)

Back To Assemblies

Save Part Not Listed?
product name

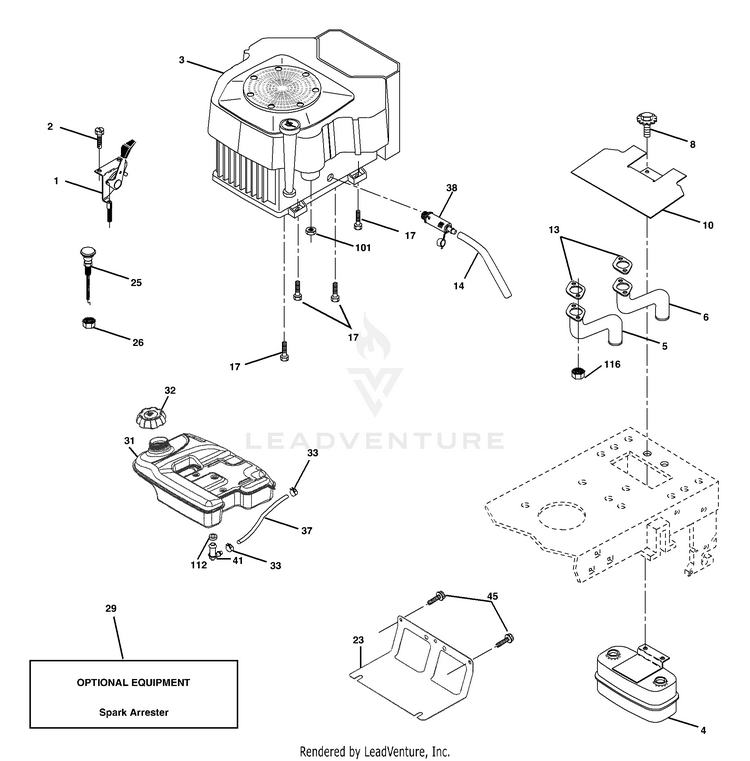

Engine

...
...
1
CONTROL.THROTTLE.BLACK HUS-532190192
...
2
Screws HUS-596437001
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
6
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
17
SCREW 3/8-16 X 1-1/2 HUS-817060624
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
25
CHOKE.CONTROL.PUSH/PULL.BLACK HUS-532190194
...
26
Nut, Keps 3/8-24 unf HUS-873920600
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
4.0 REAR FUEL TANK HUS-532179022
...
32
FUEL CAP HUS-532179124
...
33
HOSE CLAMP HUS-532123487
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
38
VALUE.OIL.DRAIN HUS-532428287
...
41
STEM FUEL TANK HUS-532139277
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
101
Nuts HUS-596433401
...
112
BUSHING OUTLET T HUS-532003645
...
116
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
