Husqvarna YTH 2348 (96045000503) (2009-02) Ride Mower

Model: YTH 2348 (96045000503) (2009-02)

Back To Assemblies

Save Part Not Listed?
product name

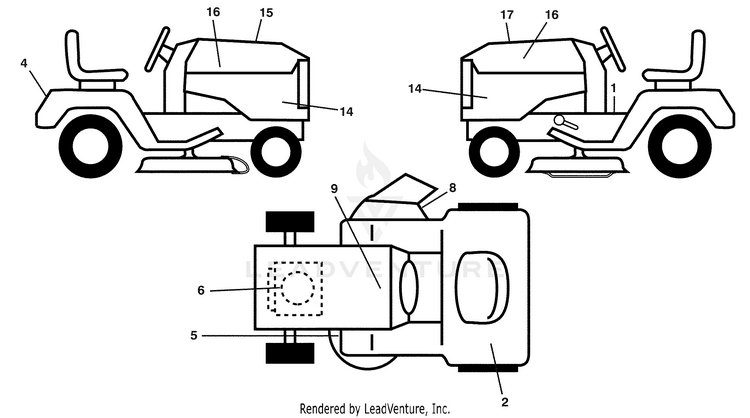

Decals

...
...
1
DECAL.WARN.STARTINST.LOWEARIEN HUS-581578701
...
2
DECAL,ETHANOL E85 WARNING HUS-532423830
...
4
DECAL.FENDER HUS-532191554
...
5
DECAL.MOWER.CAUTION.TENSION.AR HUS-581724502
...
6
DECAL, ENG. HP HUS-532408841
...
8
DECAL.DECK.BELT.ROUTING.48/54 HUS-531229002
...
9
DECAL BTRY SYMBOLS HUS-532145005
...
14
DECAL, PANEL SIDE HUS-532410055
...
15
DECAL.WARNING.CUST.RESP.E85. HUS-532423829
...
16
DECAL HOOD HUS-585160601
...
17
DECAL.RPL.BS.22INTK/HY/48E.TLT HUS-532408462
...
xx
DECAL.BYPASS.FENDER.CRD/LT/YT HUS-581724801
...
xx
PAD.FOOT.LH.HUSQ.ERGO.LT.GREY HUS-532439681
...
xx
PAD.FTRST.RH.PCH.ERGO.LT.498 HUS-532439682
