Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?

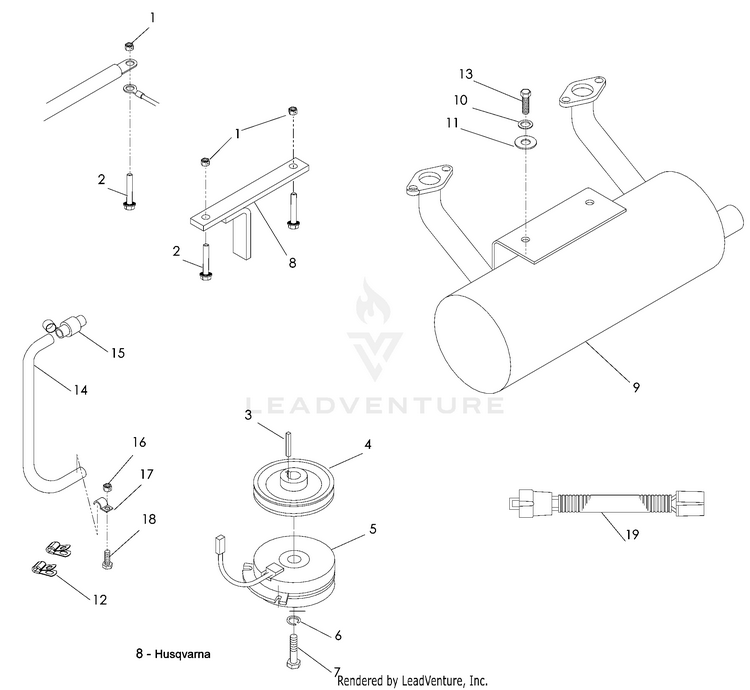

product name

Engine Plate

...
...
1
Nuts HUS-596580701
...
2
HCS 5/16-18 X 1-3/4 SERATED HUS-539113781
...
3
KEY 1/4" SQ X 1 7/8" HUS-539100152
...
4
PULLEY HUS-539106057
...
5
ELECTRIC CLUTCH W/CABLE HUS-539105406
...
6
Washers HUS-596238901
...
7
BOLT 7/16F X 2 1/2 HUS-539991120
...
8
CLUTCH TIE DOWN HUS-539106819
...
9
MUFFLER KOHLER GEN II HUS-539105896
...
10
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
11
GSPH HUS-596134901
...
12
DOUBLE TUBE CLAMP HUS-539109867
...
13
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
14
OIL DRAIN HOSE HUS-539107937
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
NUT 1/4C CENTER LOCK HUS-539990761
...
17
CLAMP HUS-539101363
...
18
Screws HUS-596230901
...
19
KOH PIGTAIL HUS-539104416
