Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

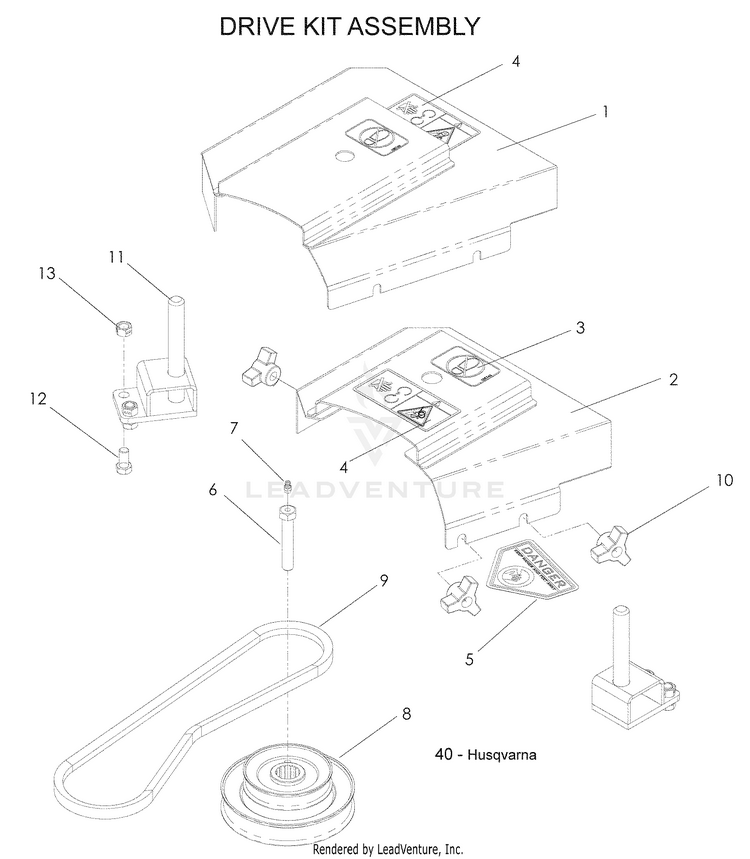

Drive Kit Assembly

...
...
1
BELT SHIELD W/DECALS, 52 HUS-539111268
...
2
BELT SHIELD W/DECALS, 61 HUS-539111269
...
3
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
4
DECAL, BELT DRIVE HUS-539105744
...
5
DECAL, CPSC HUS-539913010
...
6
HCS, 7/16-20 X 2 1/2, GR8 HUS-539112138
...
7
GSPW Zerks HUS-596899901
...
8
PULLEY HUS-539108947
...
xx
61 DBL HEX HEAD STACKED PULLEY HUS-539108948
...
9
V-BELT PUMP DRIVE HUS-539106725
...
xx
V-BELT 61" SPINDLE DRIVE HUS-539106726
...
10
KNOB, THREE PRONG HUS-539102070
...
11
BLOWER PIN WELDMENT ASM. HUS-539108944
...
12
SCREW 3/8C X 3/4 HEX CAP HUS-539990134
...
13
Nuts HUS-595305901
...
xx
DRIVE KIT, 52" NOT SHOWN HUS-539111296
...
xx
DRIVE KIT, 61" NOT SHOWN HUS-539111297
