Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

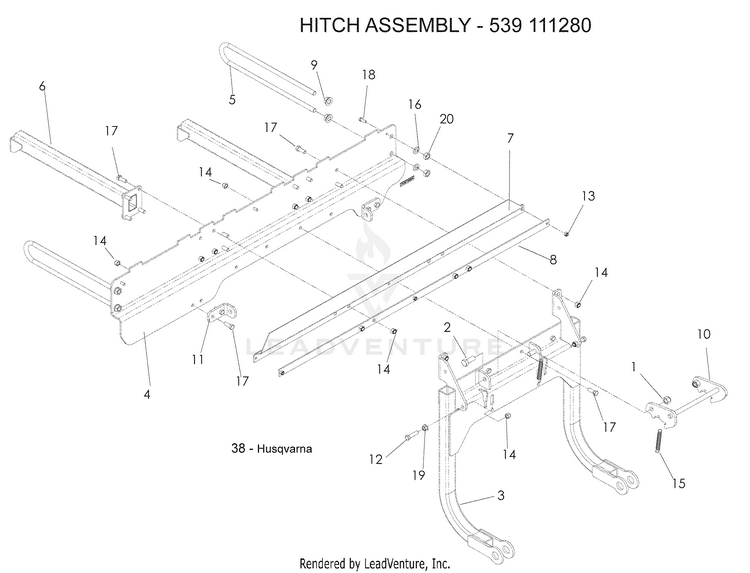

Hitch Assembly

...
...
1
GSPW NUTS HUS-596135601
...
2
HCS 1/2-13 X 1-1/4 HUS-539108369
...
3
HITCH WELDMENT HUS-539111155
...
4
MOUNT Z BRACE HUS-539111157
...
5
SUPPORT, OUTER HUS-539111158
...
6
SUPPORT ARM WELDMENT HUS-539111162
...
7
SEAL, RUBBER HUS-539111167
...
8
SEAL STRAP HUS-539111171
...
9
NUT 1/2-13 HEX HUS-539111187
...
10
LATCH WELDMENT HUS-539111190
...
11
BRACKET, SUPPORT HUS-539111267
...
12
HCS 3/8C X 1 1/2 HUS-539990655
...
13
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
14
GSPW Nuts HUS-596240901
...
15
SPRING HUS-539977250
...
16
WASHER 1/2" SPLIT LOCK HUS-539990254
...
17
Bolts HUS-596564401
...
18
Screws HUS-596230901
...
19
Washers HUS-596583501
...
20
Nuts HUS-596433401
...
xx
DECAL - PATENT PENDING NOT SHOWN HUS-539917150
