Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

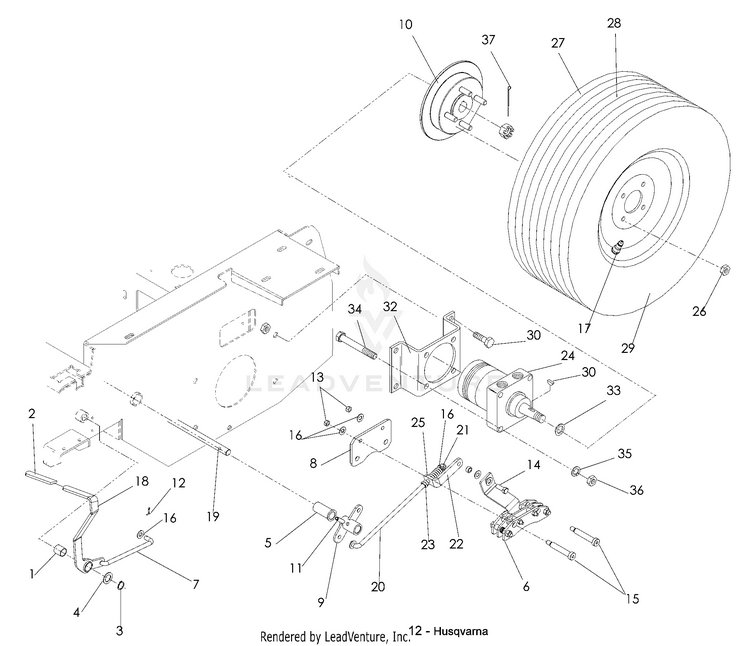

Parking Brake

...
...
1
BUSHING HUS-539108619
...
2
GRIP, PARK BRAKE HUS-539105036
...
3
RETAINING RING, 7/8" HUS-539101151
...
4
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
5
BUSHING, POLYMER 3/4X2 HUS-539113479
...
6
CALIPER HUS-539133047
...
7
LINKAGE, BRAKE HUS-539113947
...
8
PLATE, BRAKE HUS-539113948
...
9
BELLCRANK, BRAKE HUS-539113946
...
10
HUB HUS-539113945
...
11
Pins HUS-596917801
...
12
COTTER PIN 3/32 X 3/4 HUS-539990037
...
13
Nuts HUS-596230801
...
14
Bolts HUS-596564401
...
15
SB 3/8-16 X 2-1-1/2 SKT HDD ZD HUS-539113951
...
16
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
17
VALVE STEM TR-412 HUS-539912234
...
18
BRAKE LEVER WLDMT HUS-539108616
...
19
SHAFT HUS-539110624
...
20
LINKAGE, REAR BRAKE HUS-539113949
...
21
NUT 3/8F CENTERLOCK HUS-539990289
...
22
BRACKET, L HUS-539113950
...
23
Hardware HUS-596029901
...
24
WHEEL MOTOR, TJ HUS-539114523
...
25
Springs HUS-594891901
...
26
Nuts HUS-587653903
...
27
WHEEL/TIRE.ASM.23X9.5-12.GREY HUS-539112592
...
28
TIRE.TURF.MASTER.23X9.5-12 HUS-539112599
...
29
RIM 1.0" NEG OFFSET 8.5" WIDE HUS-539111149
...
30
WOODRUFF KEY HUS-539105278
...
31
GSPW NUTS HUS-596135601
...
32
MOUNT, MOTOR, WHEEL - BLK HUS-539132300
...
33
Washers HUS-596319701
...
34
HCS 1/2C X 2 3/4 HUS-539101332
...
35
WASHER 1/2" SPLIT LOCK HUS-539990254
...
36
NUT HEX 1/2 HUS-539990258
...
37
PIN COTTER 4MM X 45MM HUS-539104288
...
xx
HCS 1/2C X 1 1/4 SERRATED HEAD NOT SHOWN HUS-539990622
