Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

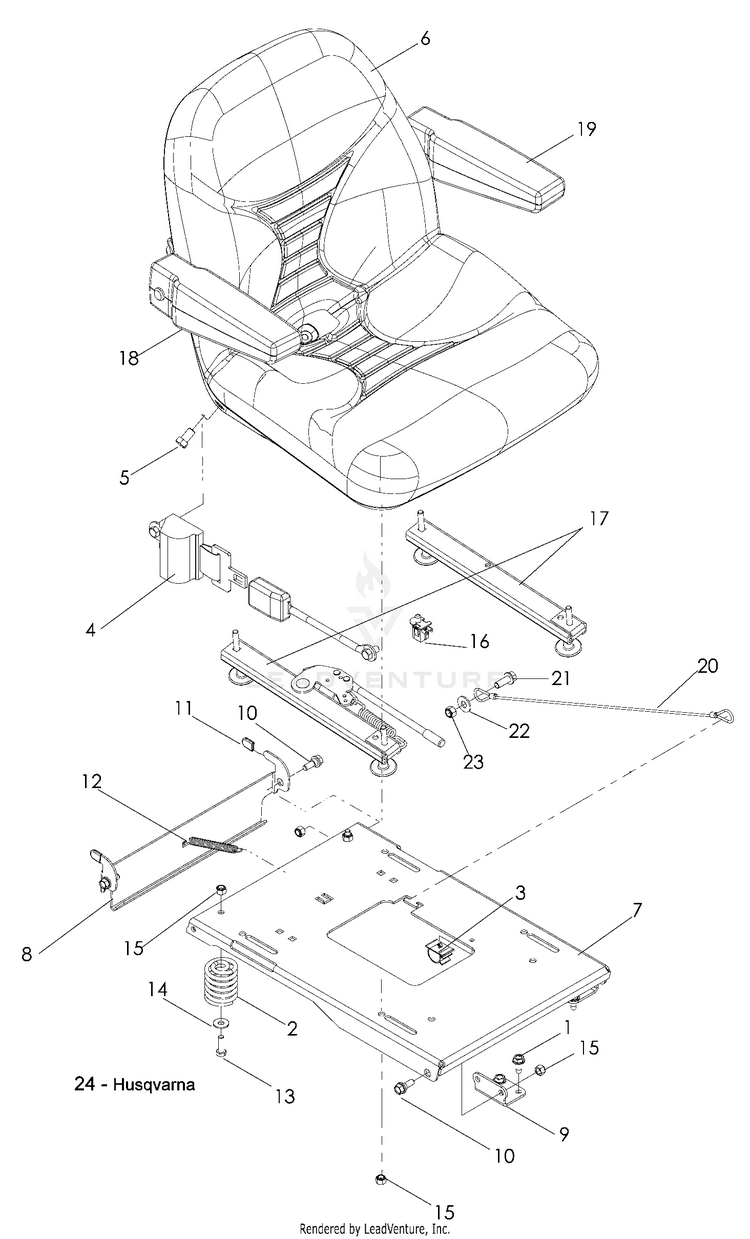

Seat

...
...
1
BOLT 5/16-18 X 3/4 HUS-539107475
...
2
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
3
PUSH-MOUNT WIRE CLIP HUS-539110815
...
4
SEAT.BELT HUS-596322701
...
5
HCS 7/16-20 X .75 GD 5 HUS-539112034
...
6
SEAT.ASM.907.TRACK.W/O.BELT HUS-501580402
...
7
PAN, SEAT - BLACK HUS-539130785
...
8
LATCH, SEAT - BLACK HUS-539130787
...
9
PIVOT, SEAT PAN HUS-539130789
...
10
SB 5/16-18 HEX HD GD5, BLK ZN HUS-539130896
...
11
GRIP, VINYL, .09 X .495 X.75 HUS-539130898
...
12
SPRING HUS-539977250
...
13
Bolts HUS-596580801
...
14
GSPH HUS-596134901
...
15
Nuts HUS-596583702
...
16
SWITCH.SNAPMOUNT.NC HUS-532421062
...
17
TRACK ADJUSTMENT KIT HUS-539112037
...
18
KIT, ARM REST, RH ROUND END HUS-574201601
...
19
KIT, ARM REST, LH ROUND END HUS-574201602
...
20
SEAT LANYARD HUS-539103247
...
21
Screws HUS-596583101
...
22
GSPW Washers HUS-596433701
...
23
GSPW Nuts HUS-596240901
