Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

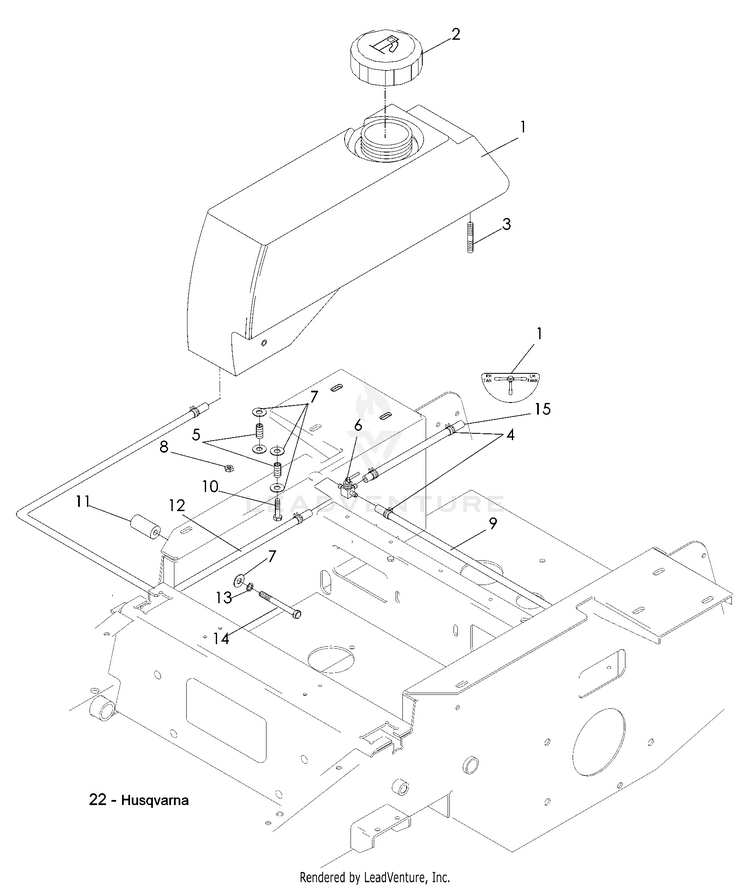

Fuel System

...
...
1
FUEL TANK RT HUS-539104410
...
xx
LEFT TANK W/CUP HOLDER HUS-539104409
...
2
FUEL CAP, GENERIC HUS-539130394
...
3
STUD, 5/16C HUS-539102502
...
4
HOSE CLAMP HUS-539912222
...
5
SPRING HUS-539102845
...
6
FUEL VALVE HUS-539102679
...
7
GSPH HUS-596134901
...
8
Nuts HUS-596580701
...
9
HOSE 35" HUS-539105280
...
10
Bolts HUS-596580801
...
11
TANK SPACER HUS-539104897
...
12
FUEL LINE HUS-539922091
...
13
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
14
Bolts HUS-596435501
...
15
FUEL LINE 13" HUS-539108212
...
16
DECAL, FUEL VALVE HUS-539102670
