Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

Hydraulic Pump - Motor

...
...
1
OIL TANK HUS-539105024
...
2
HYDRAULIC OIL FILTER HUS-539102606
...
3
FILTER HEAD HUS-539101165
...
4
HYDRAULIC CAP HUS-539101202
...
5
Screws HUS-596230901
...
6
Washers HUS-596564801
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
8
HYDRAULIC FITTING HUS-539113782
...
9
FITTING HUS-539102396
...
10
45 DEG ADJ ELBOW HUS-539132316
...
11
ELBOW, F6801-6-6-0 90 DEGREE HUS-539101238
...
12
OIL FILTER BRKT HUS-539106933
...
13
HOSE, T-ASM RETURN HUS-539132290
...
14
HOSE, LPB - MA LINE HUS-539132287
...
15
HOSE, T-ASM SUPPLY HUS-539132289
...
16
NUT 9/16-18 JIC CAP HUS-539105168
...
17
HG_PUMP, 10CC W/FAN RIGHT HUS-539132143
...
18
HG_PUMP, 10CC W/FAN LEFT HUS-539132142
...
19
O-RING HUS-539103114
...
20
O RING HUS-539103119
...
21
O RING HUS-539103118
...
22
Nuts HUS-595305901
...
23
Screws HUS-596583101
...
24
HOSE, RPA - MA LINE HUS-539132284
...
25
HOSE, RPB - MB LINE HUS-539132285
...
26
HOSE, LPA - MB LINE HUS-539132286
...
27
HOSE, LPB - MA LINE HUS-539132287

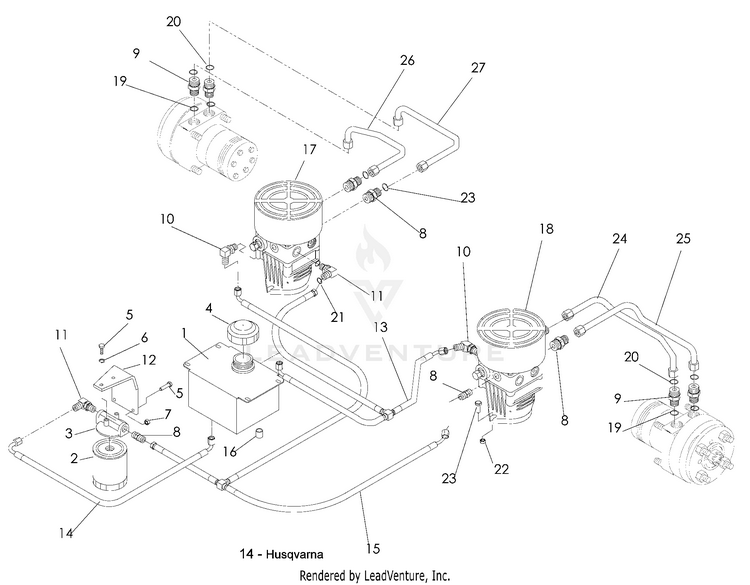

Schematic Image Zoomed
