Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

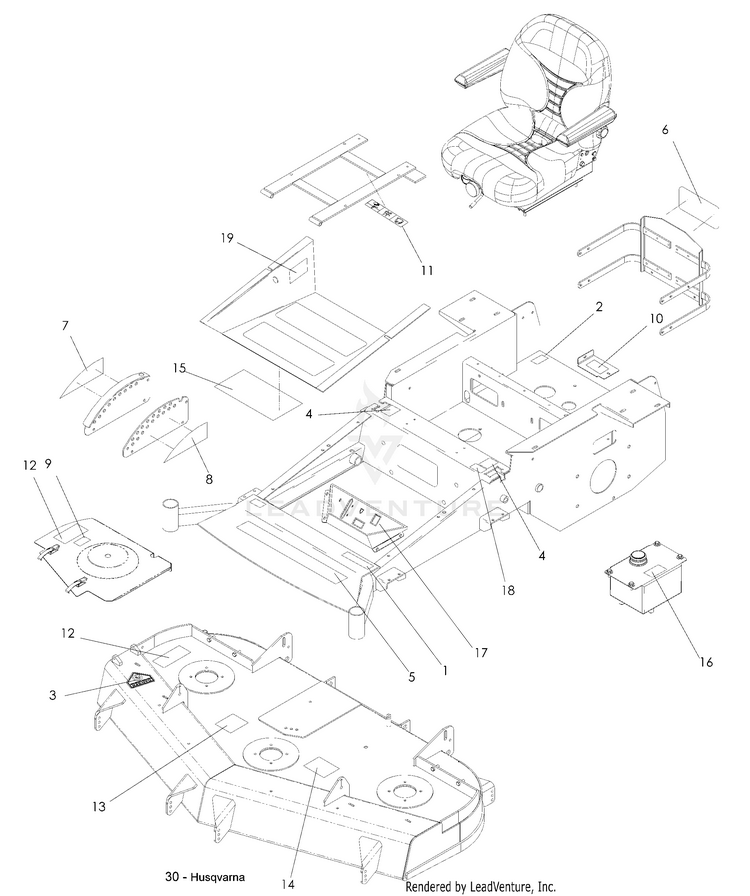

Decals

...
...
1
DECAL, LZ5227 HUS-539112701
...
xx
DECAL, LZ6127 HUS-539111120
...
2
DECALS.WARN.CA.SPKARREST/PROP HUS-596024201
...
3
DECAL, CPSC HUS-539913010
...
4
DECAL.ZTR.MOTCONTRL.SYMBOL.HUS HUS-589283001
...
5
DECAL, HUSQ 15" BLUE HUS-539111046
...
6
DECAL, CROWN H 5-1/4 SILVER HUS-539111055
...
7
DECAL, HEIGHT HUS-539104898
...
8
DECAL, HEIGHT HUS-539104899
...
9
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
10
DECAL, BELT DRIVE HUS-539105744
...
11
Decals HUS-529527001
...
12
DECAL, EURO SEVERING HUS-539105746
...
13
DECAL, ANTI SCALP HUS-539105232
...
14
DECAL, BELT ROUTING HUS-539105012
...
15
DECAL, SERVICE HUS-539105011
...
16
DECAL, OIL TANK HUS-539114832
...
17
DECAL, CONSOLE HUS-539110956
...
18
DECAL.STR.S.T.SYSMBOLONLY.2014 HUS-585142601
...
19
DECAL, WARNING HUS-539111575
...
xx
DECAL, EXHAUST NOT SHOWN HUS-539100128
...
xx
DECAL, FUEL VALVE NOT SHOWN HUS-539102670
