Husqvarna YTH 2348 (96045000501) (2008-02) Ride Mower

Model: YTH 2348 (96045000501) (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

61" Deck

...
...
1
DECK SVC W/DECALS 61" HUS HUS-510063302
...
2
WHEEL GAGE DONUT HUS-532133957
...
3
HCS 1/2-13 X 4 GR 5 ZD HUS-539108366
...
4
GSPW NUTS HUS-596135601
...
5
NUT HEX 1/2 HUS-539990258
...
6
KIT HSG ASM 52/61 HUS-966956101
...
7
Nuts HUS-598490501
...
8
PULLEY, 61 HUS-539112125
...
9
HCS 5/16C X 1 1/4 HUS-539990627
...
10
BLADE OEM 21" (61" DECK) HUS-539101733
...
11
HCS 5/8F X 1 1/4 HUS-539103299
...
12
LOCKWASHER 5/8 HUS-539990333
...
13
PIVOT BRACKET - CHUTE HUS-539130917
...
14
CHUTE, RUBBER DISCHARGE 52/61" HUS-539130901
...
15
BRACKET.REINF.CHUTE.52/61.EDIP HUS-592964402
...
16
Bolts HUS-596671401
...
17
Bolts HUS-596030801
...
18
Nuts HUS-596583702
...
19
GSPH HUS-596134901
...
20
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
21
IDLER BUSHING HUS-539103295
...
22
IDLER PULLEY HUS-539103257
...
23
IDLER PULLEY (TALL) (TALL) HUS-539103258
...
24
Washers HUS-596917301
...
25
TOP DUST CAP HUS-539108450
...
26
GSPW Nuts HUS-596240901
...
27
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
28
Washers HUS-596583501
...
29
DECK SPRING HUS-539105192
...
30
BELT SHIELD 61" RIGHT HUS-539108611
...
31
61 BELTSHIELD LT, RED HUS-539108608
...
32
GSPW Washers HUS-596433701
...
33
MAIN BAFFLE - 61" BLK HUS-539105465
...
34
CENTER BAFFLE - 61 HUS-539105461
...
35
GSPW Bolts HUS-595901601
...
36
LIFT HUS-594722002
...
37
Bolts HUS-596438501
...
38
Nuts HUS-596577901
...
39
Washers HUS-596437601
...
40
Nuts HUS-595901901
...
41
BELT, DECK 61 HUS-510201301
...
42
SHAFT SEAL HUS-539108754
...
43
BOTTOM DUST CAP HUS-539108449
...
44
PLUG-VENTED HUS-539977326
...
45
Zerks HUS-596623501
...
46
ARM-IDLER W/BRG HUS-539130391
...
47
Bolts HUS-596581801
...
48
HCS 3/8-16 X 1-1/2 HUS-539107042
...
49
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 HUS-596433501
...
50
BUSHING, IDLER HUS-539130242
...
51
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
52
HCS 3/8C X 3 HUS-539101341
...
53
PIVOT, BEARING HUS-539130205
...
54
CAP, VINYL HUS-539114823

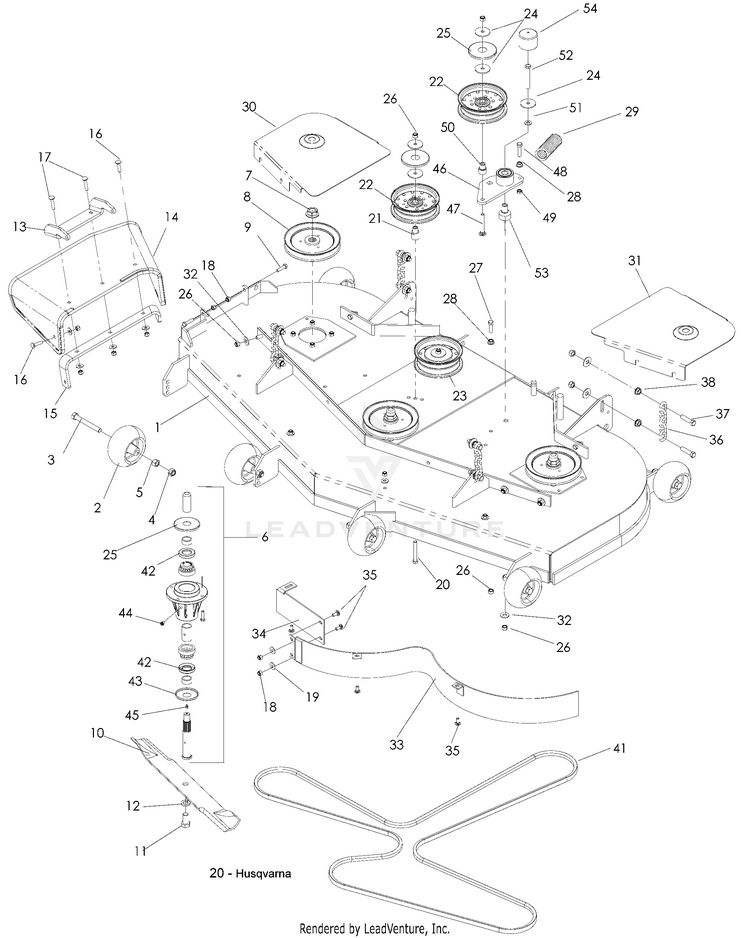

Schematic Image Zoomed
