product name

Husqvarna YTH 2348 (917289570) (2010-04) Ride Mower

Model: YTH 2348 (917289570) (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

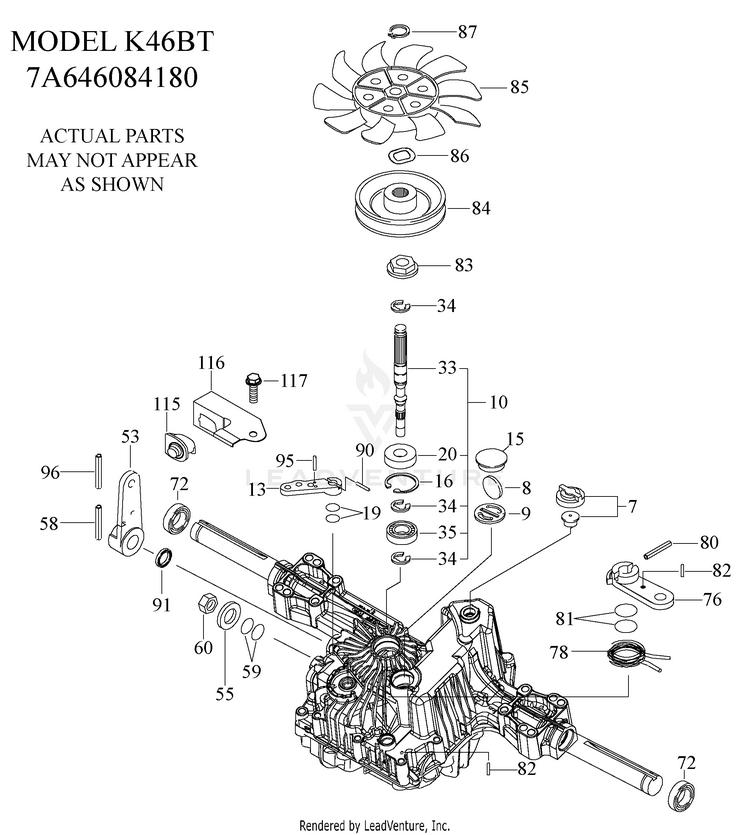

Tufftorq Transaxle

...
...
7
VALUE.VENT.15.19485924252 HUS-583348201
...
8
MAGNET.19216324360 HUS-583348301
...
9
Magnet Holder HUS-532414397
...
10
Pump Shaft/Bearing Kit HUS-532415923
...
13
LEVER.BYPASS.1A632029520 HUS-583348501
...
15
Sealing Cap 30 HUS-532414399
...
16
Snap Ring C 35 HUS-532414400
...
19
O-RING.1A.P10A.24311240100 HUS-583348801
...
20
SEAL.TC.153507 (24421153507) HUS-583345001
...
33
Pump Shaft (Standard) HUS-532414403
...
34
E-Ring 15 HUS-532414404
...
35
Bearing 6202c3 HUS-532414405
...
53
LEVER.CONTROL.F.1A646029400 HUS-583350901
...
55
Washer 12 HUS-532415924
...
58
Roll Pin 6 x 40 HUS-532415925
...
59
O-Ring 1a P14 HUS-532415926
...
60
Nut 12 HUS-532415927
...
72
SEAL.19, 19216334280 HUS-583349301
...
76
Brake Lever HUS-532414408
...
78
SPRING.RTN.BRK.168T2036180 HUS-583349501
...
80
PIN.SPRING.5*32.22351050032 HUS-583349601
...
81
O-RING.1A.P12.24311000120 HUS-583349701
...
82
PIN SPRING 4 16 22351040016 HUS-583349801
...
83
COLLAR.SPINE.1A646025300 HUS-583349901
...
84
PULLEY.L (1A646025810) HUS-583350001
...
85
Fan, Black HUS-532414415
...
86
WASHER.WAVE.1A646083060 HUS-583350201
...
87
RING.SNAP.19215489090 HUS-583350301
...
90
PIN.3.0A.20 (22351030020) HUS-583350401
...
91
SEAL.OIL.16 HUS-583351001
...
95
DECAL.CONSOLE.PANEL.PARTNER HUS-583352701
...
96
PIN.ROLL.3.5 HUS-583350601
...
115
Switch 6440-11 Delta HUS-532415928
...
116
Switch Bracket HUS-532415929
...
117
Tapping Screw 8 x 20 HUS-532415930
