Husqvarna YTH 2248 B (954571977) (2004-06) Ride Mower

Model: YTH 2248 B (954571977) (2004-06)

Back To Assemblies

Save Part Not Listed?
product name

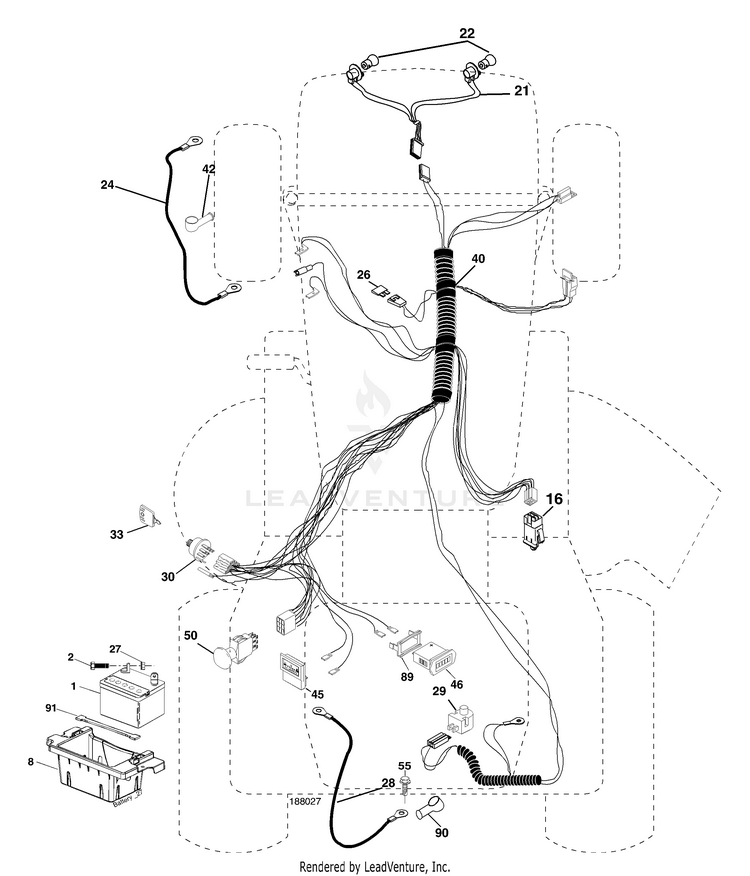

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
BOX.BATTERY.MOUNT.FRONT.LT HUS-532186491
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS ASSY LIGHT HUS-532183759
...
22
LIGHTBULB HUS-532004152
...
24
CABLE.BATTERY.6GA.RED HUS-532178909
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE GROUND 6 GA 21" 90T BLK HUS-532145491
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
IGNITION SWITCH HUS-532175566
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HARNESS.IGN.ELCL.LT.NO.RELAY HUS-532188027
...
42
COVER.TERMINAL.RED HUS-532154336
...
45
AMMETER HUS-532122822
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
55
Screws HUS-596030701
...
89
BRACKET SNAP-IN HOURMETER HUS-532169639
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
91
STRAP.BATTERY.MOUNT.FRONT(2 2) HUS-532190270
