Husqvarna YTH 2248 A (954571977) (2004-06) Ride Mower

Model: YTH 2248 A (954571977) (2004-06)

Back To Assemblies

Save Part Not Listed?
product name

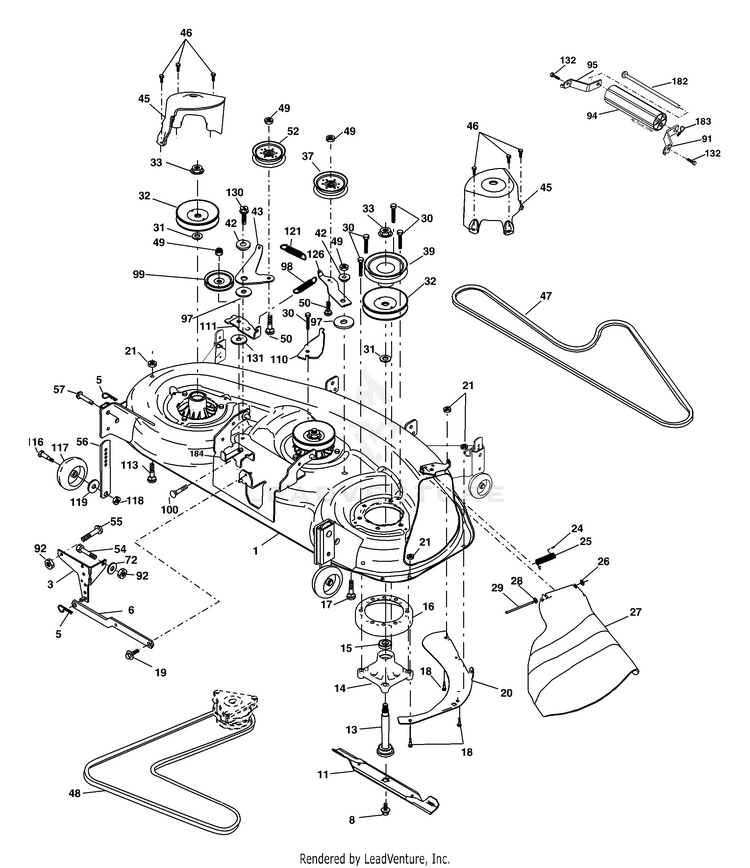

Mower Deck

...
...
1
DECK.SVC.4.GA.WHLS.48".BLK HUS-532184233
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
5
RETAINER-SPRNG RB HUS-532124670
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
11
48" HI-LIFT BLADE HUS-532180054
...
13
SHAFT, ASM. MANDEREL SEALED HUS-532175147
...
14
HOUSING, MANDREL 48" HUS-532174358
...
15
BEARING HUS-532110485
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
17
Bolts HUS-596987501
...
18
Bolts HUS-596136401
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531167501
...
21
Hardware HUS-596040501
...
24
CAP-SLEEVE LT HUS-532105304
...
25
TORSION SPRING HUS-539107609
...
26
NUT PUSH M HUS-532110452
...
27
DEFLECTOR.ASM.BLACK.48" HUS-532180655
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-819111016
...
29
Rods HUS-595297001
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
PULLEY MANDREL HUS-532173436
...
33
Nuts HUS-596134801
...
37
PULLEY.IDLER.FLAT HUS-532177968
...
39
PULLEY.DRIVEN.DECK.48' HUS-532174375
...
42
SPACER.RETAINER.MOWER HUS-532165723
...
43
ARM, IDLER SECONDARY HUS-532174373
...
45
COVER.MANDREL.DECK.48" HUS-532180806
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
47
V-BELT, 48"SECONDARY HUS-532180808
...
48
V-BELT PRIMARY 48" HUS-532174368
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
50
GSPW Bolts HUS-596136101
...
52
Pulleys HUS-596481401
...
54
Bolts HUS-596564401
...
55
Bolts HUS-596728201
...
56
BAR.ADJUST.WHEEL.ANTI.SCALP.BL HUS-532155986
...
57
RIVET.PIN.HEAD.YELLOW. HUS-532156941
...
72
GSPH HUS-596134901
...
91
SERVICE KIT BRKT.NOSEROLLER.RH HUS-529846201
...
92
Nuts HUS-596322601
...
94
NOSE ROLLER 48" HUS-532176066
...
95
SERVICE KIT BRKT.NOSEROLLER.LH HUS-529846101
...
97
WASHER HUS-532178515
...
98
SPRING PRIMARY DRIVE HUS-532179479
...
99
PULLEY.V.IDLER HUS-532193195
...
100
Bolts HUS-596136301
...
110
ARM, SPRING SECONDARY HUS-532175016
...
111
ARM SPRING FIXED TENSION HUS-532174610
...
113
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
116
Bolts HUS-596434404
...
117
WHEEL GAGE DONUT HUS-532133957
...
118
Nuts HUS-596322601
...
119
GSPH HUS-596134901
...
121
SPRING.DRIVE.SECONDARY.48".DEC HUS-532174371
...
126
ARM, IDLER PRIMARY DECK HUS-532174372
...
130
SCREW 3/8-16X1 HUS-817000616
...
131
Washer 13/32 x 1 x 6 Ga. HUS-819131606
...
132
SCREW, 3/8-16X3/4 HUS-817000612
...
182
Rods HUS-594092501
...
183
SPRING RETAINER HUS-532003146
...
184
KEEPER BELT IDLER PLATED HUS-532173979
...
xx
MANDREL ASSY (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included) HUS-532174357
...
xx
DECK ASM SVC 48" ELE.HD/HP ADJ (Std. Deck-Order separately nose roller components key nos. 91, 94, 95, 132, 182, 183) HUS-532181579
