Husqvarna YTH 2242 T (96043002100) (2006-01) Ride Mower

Model: YTH 2242 T (96043002100) (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

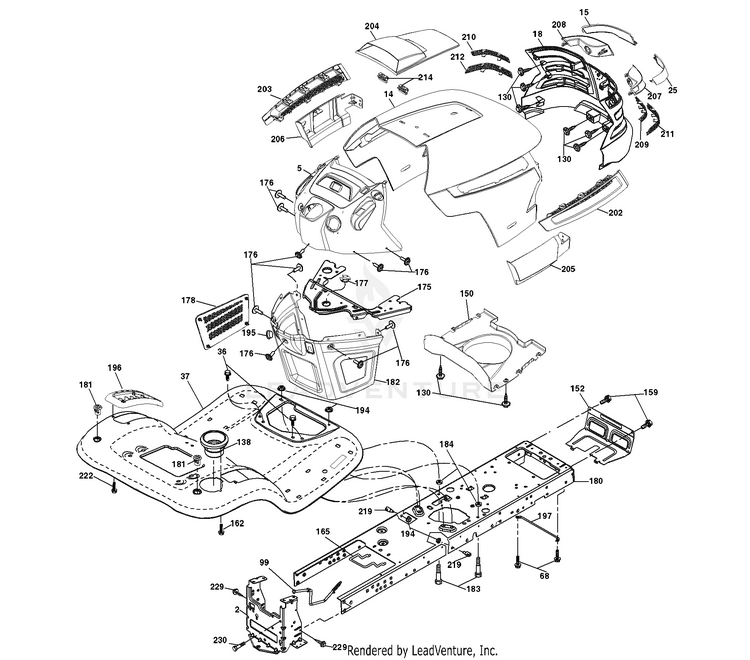

Chassis

...
...
2
DRAWBAR.1PC.NSTL HUS-532194263
...
5
DASH.HUSQ.UPR.ELE.SVMD HUS-532401823
...
14
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN HUS-532442396
...
15
LENS.LH.TEX.GT.HUSQ.CL HUS-532198907
...
18
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
25
LENS.RH.TEX.GT.HUSQ.CL HUS-532198906
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
37
SERVICE KIT FENDER.TLT.CPH.615 HUS-597652401
...
68
Screws HUS-596030701
...
99
KIT.SVC.ROD ASM.BYPASS.405092 HUS-583299801
...
130
Screws HUS-596321701
...
138
HOLDER.CUP.LT.GREY HUS-532439747
...
150
AIR.DUCT.TEXGT.HUSQ.SV HUS-532198513
...
152
SHIELD.BROWNING/DEBRIS HUS-532194329
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
162
Screws HUS-596134101
...
165
SUPPORT.TANK.REAR.WIRE HUS-532400315
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
177
BUSHING, STEERING HUS-532195227
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
183
Screws HUS-595305701
...
184
SPACER.FENDER HUS-532195780
...
194
GSPW Nuts HUS-596135701
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
196
CONSOLE.ASM.DECKLFT.BL/RBT.TLT HUS-532414579
...
197
ROD.PIVOT.HOOD HUS-532409167
...
202
VENT.SIDE.HOOD.HUSQ.RH.GREY HUS-532403048
...
203
VENT.SIDE.HOOD.HUSQ.LH.GRAY HUS-532403076
...
204
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
205
SKIRT.HOOD.SIDE.HUSQ.RH.GREY HUS-532401709
...
206
SKIRT.HOOD.SIDE.HUSQ.LH.GREY HUS-532401711
...
207
BEZEL.RH.TEX.GT.HUSQ HUS-532197198
...
208
BEZEL.LH.TEX.GT.HUSQ HUS-532197199
...
209
INSERT.HEX.GRILL.HUSQ.GREY HUS-532199130
...
210
INSERT.HEX.GRILL.HUSQ. HUS-532199131
...
211
INSERT.HEX.GRILL.HUSQ. HUS-532199132
...
212
INSERT.HEX.GRILL.HUSQ. HUS-532199133
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
219
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
222
SCREW.1/4-20X5/8 HUS-532137729
...
229
SCREW 3/8-16X1 HUS-817000616
...
230
SHOULDER BOLT 5/16-18TT HUS-532170165
