Husqvarna YTH 2242 T (917.279181) (2006-05) Ride Mower

Model: YTH 2242 T (917.279181) (2006-05)

Back To Assemblies

Save Part Not Listed?
product name

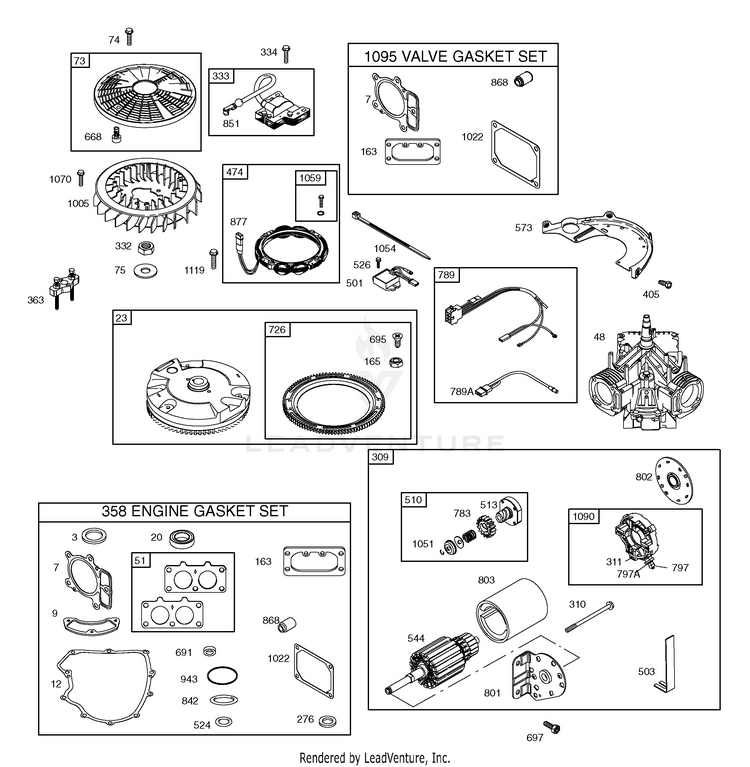

Briggs Engine (Part 3)

...
...
3
Seal-Oil (Magneto Side); Included in Engine Gasket Set, Key. No. 358 HUS-391086S
...
7
Gasket-Cylinder Head Included in Engine Gasket Set, Key. No. 358; Included in Valve Gasket Set, Key. No. 1095 HUS-693997
...
9
Gasket-Breather Included in Engine Gasket Set, Key. No. 358 HUS-690937
...
12
Gasket-Crankcase Included in Engine Gasket Set, Key. No. 358 HUS-697227
...
20
Seal-Oil (PTO Side); Included in Engine Gasket Set, Key. No. 358 HUS-690947
...
23
Flywheel HUS-691053
...
48
Short Block HUS-698172
...
51
Gasket-Intake Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977 HUS-791677
...
73
Screen-Rotating HUS-499439
...
74
Screw (Rotating Screen) HUS-698425
...
75
Washer (Flywheel) HUS-691056
...
163
Gasket-Air Cleaner HUS-691001
...
165
Nut (Ring Gear) HUS-693148
...
276
Washer-Sealing Included in Carburetor Overhaul Kit, Key. No. 121; Included in Valve Gasket Set, Key. No. 1095 HUS-690997
...
309
Motor-Starter HUS-497595
...
310
Bolt-Starter Motor HUS-690323
...
311
Brush Set HUS-497608
...
332
Nut (Flywheel) HUS-691059
...
333
Armature-Magneto HUS-691060
...
334
Screw (Magneto Armature) HUS-691061
...
358
Set-Engine Gasket HUS-694012
...
363
Flywheel Puller HUS-19203
...
405
Screw (Back Plate) HUS-697820
...
474
Alternator HUS-696458
...
501
Regulator HUS-691185
...
503
Strap-Ground HUS-691532
...
510
Drive-Starter HUS-696541
...
513
Clutch-Drive HUS-692024
...
524
Seal-Dipstick Tube Included in Engine Gasket Set, Key. No. 358 HUS-691032
...
526
Screw HUS-691108
...
544
Armature-Starter HUS-692034
...
573
Plate-Back HUS-790444
...
668
Spacer HUS-691215
...
691
Seal-Governor Shaft Included in Engine Gasket Set, Key. No. 358 HUS-790574
...
695
Screw (Ring Gear) HUS-693149
...
697
Screw HUS-690372
...
726
Gear-Ring HUS-499612
...
783
Gear-Pinion HUS-695708
...
789
Harness-Wiring HUS-698330
...
789A
Harness-Wiring HUS-790544
...
797
Nut HUS-691029
...
797A
Nut HUS-693167
...
801
Cap-Drive HUS-691283
...
802
Cap-End HUS-691286
...
803
Housing-Starter HUS-693757
...
842
Seal-Dipstick/Tube Included in Engine Gasket Set, Key. No. 358 HUS-691031
...
851
Terminal-Spark Plug HUS-493880S
...
868
Seal-Valve Included in Engine Gasket Set, Key. No. 358; Included in Valve Gasket Set, Key. No. 1095 HUS-690968
...
877
Wire/Connector-Alternator HUS-399916
...
943
Seal-O Ring (Oil Pump Cover); Included in Engine Gasket Set, Key. No. 358 HUS-690589
...
1005
Fan-Flywheel HUS-790698
...
1022
Gasket-Rocker Cover Included in Engine Gasket Set, Key. No. 358; Included in Valve Gasket Set, Key. No. 1095 HUS-690971
...
1051
Ring-Retaining HUS-691265
...
1054
Tie-Cable HUS-280275
...
1059
Kit-Screw/Washer HUS-698516
...
1070
Screw (Flywheel Fan) HUS-690372
...
1090
Retainer-Brush HUS-691293
...
1095
Kit-Valve Overhaul HUS-699735
...
1119
Screw HUS-691183
