Husqvarna YTH 2242 T (917.279181) (2006-05) Ride Mower

Model: YTH 2242 T (917.279181) (2006-05)

Back To Assemblies

Save Part Not Listed?
product name

Briggs Engine (Part 1)

...
...
1
Cylinder Assembly HUS-699753
...
2
Kit-Bushing/Seal (Magneto Side) HUS-499585
...
3
Seal-Oil (Magneto Side); Included in Engine Gasket Set, Key. No. 358 HUS-391086S
...
4
Sump-Engine HUS-699747
...
8
Breather Assembly HUS-792185
...
9
Gasket-Breather Included in Engine Gasket Set, Key. No. 358 HUS-690937
...
10
Screw (Breather Assembly) HUS-691108
...
11
Tube-Breather HUS-792184
...
12
Gasket-Crankcase Included in Engine Gasket Set, Key. No. 358 HUS-697227
...
15
Plug-Oil Drain HUS-690946
...
16
Crankshaft HUS-699700
...
20
Seal-Oil (PTO Side); Included in Engine Gasket Set, Key. No. 358 HUS-690947
...
22
Screw (Engine Sump) HUS-694966
...
24
Key-Flywheel HUS-222698S
...
25
Piston Assembly (Standard) HUS-792117
...
25
Piston Assembly (.020" Over-size) HUS-792144
...
26
Ring Set-Piston (Standard) HUS-792026
...
26
Ring Set-Piston (.020" Oversize) HUS-792073
...
27
Lock-Piston Pin HUS-690975
...
28
Pin-Piston HUS-690229
...
29
Rod-Connecting HUS-699699
...
32
Screw (Connecting Rod) HUS-690976
...
45
Tappet-Valve HUS-690977
...
46
Camshaft HUS-790562
...
50
Manifold-Intake HUS-695241
...
51
Gasket-Intake Included in Engine Gasket Set, Key. No. 358; Included in Carburetor Overhaul Kit, Key. No. 121; Included in Carburetor Gasket Set, Key. No. 977 HUS-791677
...
53
Stud (Carburetor) HUS-690951
...
54
Screw (Intake Manifold) HUS-699816
...
54A
Screw (Intake Manifold) HUS-695239
...
146
Key-Timing HUS-690979
...
163
Gasket-Air Cleaner HUS-691001
...
188
Screw (Control Bracket) HUS-691108
...
212
Link-Throttle HUS-695238
...
213
Bracket-Choke Control HUS-691021
...
216
Link-Choke HUS-691022
...
219
Gear-Governor HUS-698231
...
220
Washer (Governor Lever) HUS-690412
...
222
Bracket-Control HUS-698761
...
250
Retainer-Breather HUS-690957
...
252
Collector-Oil HUS-690956
...
265
Clamp-Casing HUS-691024
...
267
Screw (Casing Clamp) HUS-695134
...
287
Screw (Dipstick Tube) HUS-691108
...
304
Housing-Blower HUS-695277
...
305
Screw (Blower Housing) HUS-691005
...
305A
Screw (Blower Housing) HUS-790690
...
415
Plug (Crankcase Cover/Sump) HUS-690283
...
415A
Plug HUS-690283
...
431
Elbow-Intake HUS-790816
...
445
Filter-Air Cleaner Cartridge HUS-499486S
...
447
Screw HUS-691003
...
447A
Screw HUS-691108
...
467
Knob-Air Cleaner HUS-691008
...
467
Knob-Air Cleaner HUS-790697
...
523
Dipstick HUS-691036
...
524
Seal-Dipstick Tube Included in Engine Gasket Set, Key. No. 358 HUS-691032
...
525
Tube-Dipstick HUS-691037
...
552
Bushing-Governor Crank HUS-690552
...
615
Retainer-Governor Shaft HUS-698290
...
617
Seal-O Ring HUS-697891
...
654
Nut HUS-690958
...
691
Seal-Governor Shaft Included in Engine Gasket Set, Key. No. 358 HUS-790574
...
703
Clip HUS-691010
...
718
Pin-Locating HUS-690959
...
741
Gear-Timing HUS-690980
...
750
Screw HUS-696999
...
842
Seal-Dipstick/Tube Included in Engine Gasket Set, Key. No. 358 HUS-691031
...
847
Dipstick/Tube Assembly HUS-499602
...
865
Cover-Air Guide HUS-691012
...
865A
Cover-Air Guide HUS-691014
...
929
Screw HUS-691003
...
943
Seal-O Ring (Oil Pump Cover); Included in Engine Gasket Set, Key. No. 358 HUS-690589
...
965
Cover-Oil Pump HUS-499613
...
967
Filter-Pre Cleaner HUS-273638S
...
968
Cover-Air Cleaner HUS-790689
...
1013
Nipple-Oil Filter HUS-690954
...
1017
Screen-Oil Pump HUS-690770
...
1024
Pump-Oil HUS-499054
...
1026
Rod-Push HUS-690981
...
1026A
Rod-Push HUS-690982
...
1027
Filter-Oil HUS-492932S
...
1035
Shaft-Pump HUS-691042
...
1036
Label-Emissions HUS-792019
...
1058
Owner's Manual HUS-276245
...
1329
Replacement Engine HUS-4417770027
...
1330
Repair Manual HUS-273521

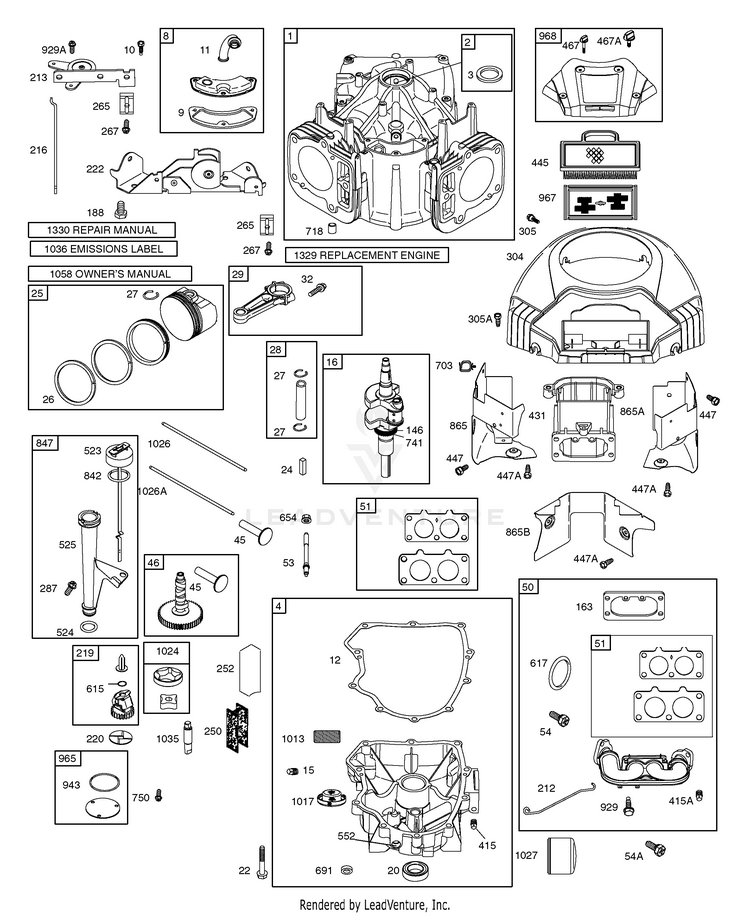

Schematic Image Zoomed
