Husqvarna YTH 2242 T (917.279180) (2006-05) Ride Mower

Model: YTH 2242 T (917.279180) (2006-05)

Back To Assemblies

Save Part Not Listed?
product name

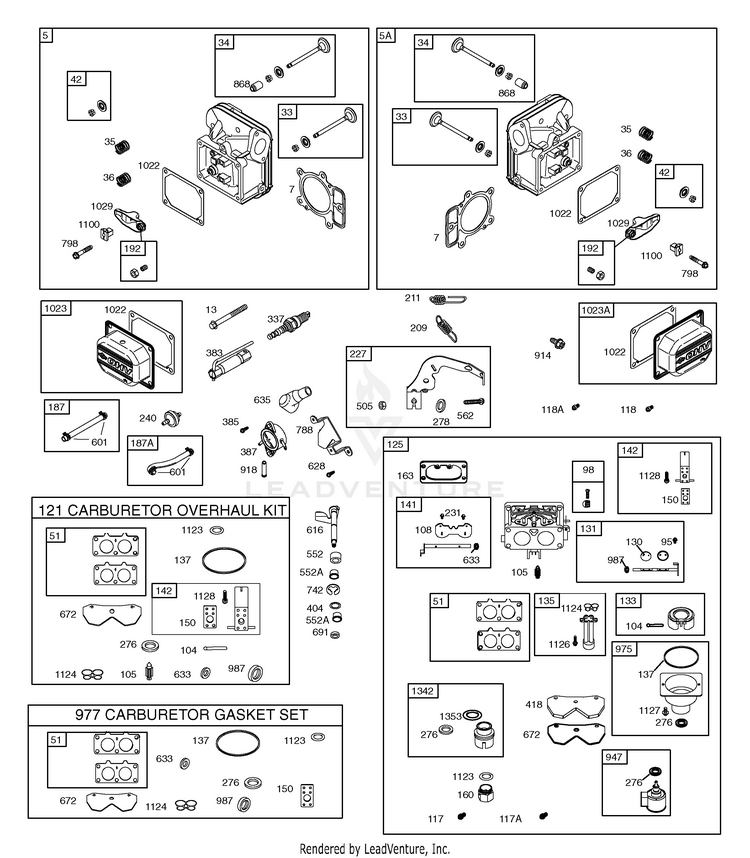

Briggs Engine (Part 2)

...
...
5
Head-Cylinder (Cylinder 1) HUS-693998
...
5A
Head-Cylinder (Cylinder 2) HUS-693999
...
7
Gasket-Cylinder Head Included in Engine Gasket Set, Key. No. 358,Included in Valve Gasket Set, Key. No. 1095 HUS-693997
...
13
Screw (Cylinder Head) HUS-791130
...
33
Valve-Exhaust HUS-499596
...
34
Valve-Intake HUS-697464
...
35
Spring-Valve (Intake) HUS-690963
...
36
Spring-Valve (Exhaust) HUS-690963
...
42
Keeper-Valve HUS-499586
...
51
Gasket-Intake Included in Engine Gasket Set, Key. No. 358,Included in Carburetor Overhaul Kit, Key. No. 121,Included in Carburetor Gasket Set, Key. No. 977 HUS-791677
...
95
Screw (Throttle Valve) HUS-690718
...
98
Kit-Idle Speed HUS-699721
...
104
Pin-Float Hinge Included in Carburetor Overhaul Kit, Key. No. 121 HUS-694918
...
105
Valve-Float Needle Included in Carburetor Overhaul Kit, Key. No. 121 HUS-698537
...
108
Valve-Choke HUS-699723
...
117
Jet-Main (Standard) HUS-699732
...
117A
Jet-Main (Standard) HUS-699733
...
118
Jet-Main (High Altitude)(Left) HUS-699733
...
118A
Jet-Main (High Altitude (Right) HUS-699458
...
121
Kit-Carburetor Overhaul HUS-699734
...
125
Carburetor HUS-699709
...
130
Valve-Throttle HUS-690993
...
131
Kit-Throttle Shaft HUS-499805
...
133
Float-Carburetor HUS-699724
...
135
Tube-Fuel Transfer HUS-699729
...
137
Gasket-Float Bowl Included in Carburetor Overhaul Kit, Key. No. 121 HUS-690994
...
141
Kit-Choke Shaft HUS-699722
...
142
Nozzle-Carburetor HUS-699726
...
150
Gasket-Nozzle HUS-690995
...
160
Retainer-Solenoid HUS-699727
...
163
Gasket-Air Cleaner HUS-691001
...
187
Line-Fuel (Cut to Required Length) HUS-791766
...
187A
Line-Fuel (Molded) HUS-791744
...
192
Adjuster-Rocker Arm HUS-690083
...
209
Spring-Governor HUS-697674
...
211
Spring-Governed Idle HUS-691019
...
227
Lever-Governor Control HUS-792492
...
231
Screw (Choke Valve) HUS-690718
...
240
Filter-Fuel HUS-691035
...
276
Washer-Sealing Included in Carburetor Overhaul Kit, Key. No. 121,Included in Valve Gasket Set, Key. No. 1095 HUS-690997
...
337
Plug-Spark HUS-491055S
...
383
Wrench-Spark Plug HUS-19374
...
385
Screw (Fuel Pump) HUS-691108
...
387
Pump-Fuel HUS-808656
...
404
Washer (Governor Crank) HUS-690442
...
418
Plate-Carburetor HUS-690999
...
505
Nut (Governor Control Lever) HUS-691029
...
552
Bushing-Governor Crank HUS-690552
...
552A
Bushing-Governor Crank HUS-690553
...
562
Bolt (Governor Control Lever) HUS-690311
...
601
Clamp-Hose HUS-691038
...
616
Crank-Governor HUS-691045
...
628
Screw (Fuel Pump Bracket) HUS-691108
...
633
Seal-Choke/Throttle Shaft Included in Carburetor Overhaul Kit, Key. No. 121 HUS-690998
...
635
Boot-Spark Plug HUS-66538S
...
672
Gasket-Carburetor Plate HUS-690234
...
691
Seal-Governor Shaft Included in Engine Gasket Set, Key. No. 358 HUS-790574
...
742
Retainer-E Ring HUS-690328
...
788
Bracket-Fuel Pump HUS-691039
...
798
Screw (Rocker Arm) HUS-697890
...
868
Seal-Valve Included in Engine Gasket Set, Key. No. 358,Included in Valve Gasket Set, Key. No. 1095 HUS-690968
...
914
Screw (Rocker Cover) HUS-691127
...
918
Hose-Vacuum HUS-694000
...
947
Solenoid-Fuel HUS-699728
...
975
Bowl-Float HUS-499810
...
977
Gasket Set-Carburetor HUS-699735
...
987
Seal-Throttle Shaft Included in Carburetor Overhaul Kit, Key. No. 121 HUS-691000
...
1022
Gasket-Rocker Cover Included in Engine Gasket Set, Key. No. 358,Included in Valve Gasket Set, Key. No. 1095 HUS-690971
...
1023
Cover-Rocker (Cylinder 1) HUS-499599
...
1023A
Cover-Rocker (Cylinder 2) HUS-499600
...
1029
Arm-Rocker HUS-690972
...
1100
Pivot-Rocker Arm HUS-791959
...
1123
Seal-O Ring (Solenoid Retainer) HUS-699725
...
1124
Seal-O Ring (Fuel Transfer Tube) HUS-690988
...
1126
Screw (Fuel Transfer Tube) HUS-690991
...
1127
Screw (Float Bowl) HUS-690992
...
1128
Screw (Carburetor Nozzle) HUS-690990
...
1342
Extension-Fuel Transfer Tube HUS-699731
