Husqvarna YTH 2242 B (954570383) (2003-01) Ride Mower

Model: YTH 2242 B (954570383) (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

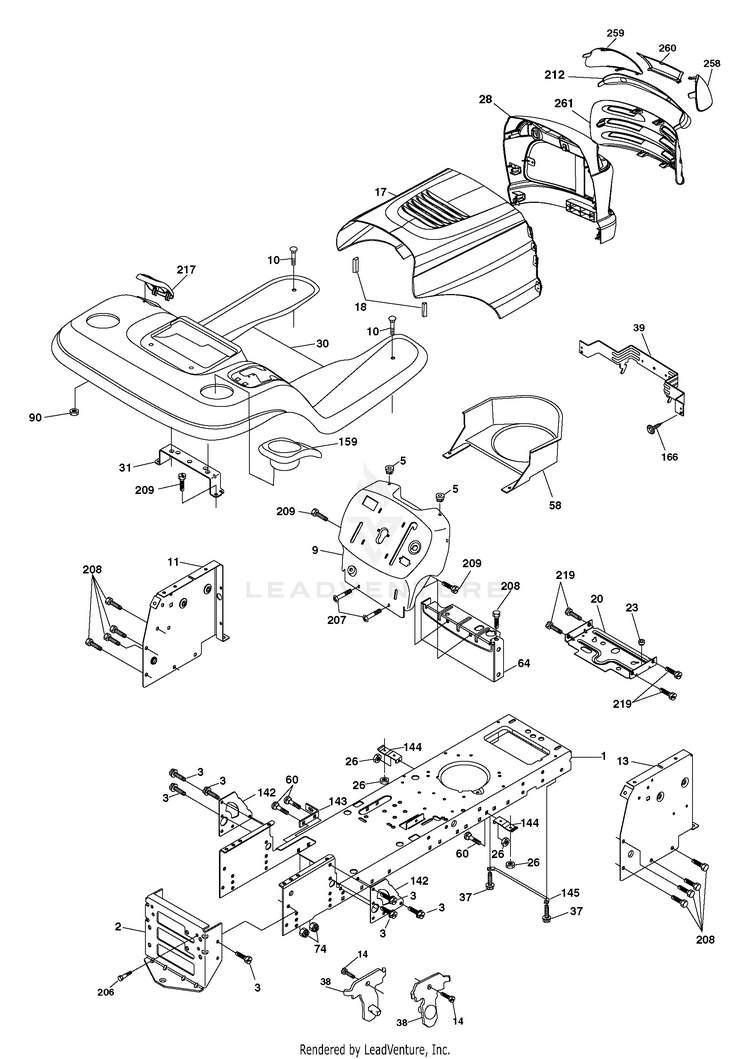

Chassis And Enclossures

...
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
2
DRAWBAR, 12GA HUS-532176554
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
9
DASH HUS-532168345
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
PANEL ASM, DASH RH HUS-532172106
...
14
Bolts HUS-596564001
...
17
HOOD.PNT.STEEL.LASER.LT HUS-532185682
...
18
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
26
Nuts HUS-596322601
...
28
GRILL/LEN.ASM.DL.HUSQ HUS-532185292
...
30
FENDER.W/CUPHOLDER.ORANGE HUS-532192814
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
37
Screws HUS-596030701
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
39
BRACKET PIVOT HUS-532407807
...
58
AIR DUCT HUS-532151171
...
60
Bolt RDHD SQNK 3/8-16 x 3/4 HUS-872140606
...
64
DASH LOWER HUS-532154798
...
74
Nuts HUS-596322601
...
90
NUT.PUSH.3/16 HUS-532124346
...
142
PLATE REINFORCEMENT HUS-532175702
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
144
BRKT, FOOT REST HUS-532175582
...
145
ROD.PIVOT.HOOD HUS-532409167
...
159
CUPHOLDER.RIGHT.GREY HUS-532191120
...
166
SCREW.HI-LO#13-16X5/8 HUS-532189747
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
212
INSERT.LENS.REFLECTIVE HUS-532183548
...
217
CONSOLE FUEL WINDOW GRAY HUS-532179132
...
219
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
258
LENS.HUSQ.LASER LT.CLEAR.RH HUS-532183379
...
259
LENS.HUSQ.LASER LT.CLEAR.LH HUS-532183378
...
260
COVER.LENS.HUSQ.( HAVE GRAY) HUS-532185429
...
261
INSERT GRILLE HUS-532185433
