Husqvarna YTH 2148 D (954571960) (2004-04) Ride Mower

Model: YTH 2148 D (954571960) (2004-04)

Back To Assemblies

Save Part Not Listed?
product name

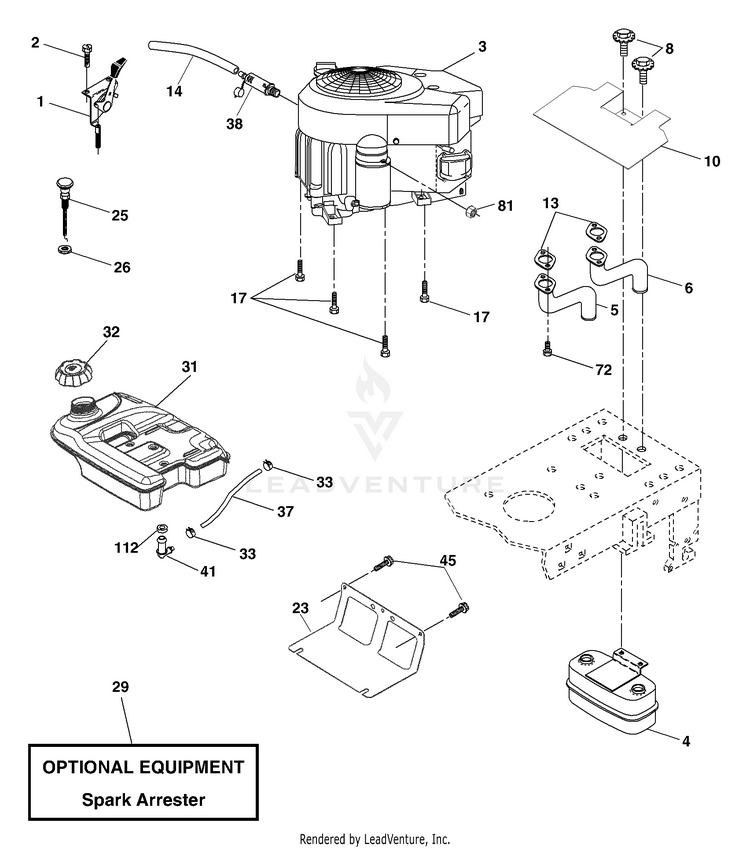

Engine

...
...
1
CONTROL, THROTTLE HUS-532170771
...
2
Screws HUS-596437001
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
EXHAUST.TUBE.MUFFLR.LH.VANG HUS-532191548
...
6
EXHAUST.TUBE.MUFFLR.RH.VANG HUS-532191549
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
13
GASKET.MUFFLER HUS-532165391
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
17
SCREW 3/8-16 X 1-1/2 HUS-817060624
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
25
CONTROL.CHOKE.40"BLACK HUS-532161729
...
26
Nut Keps 3/8-24 unf HUS-873920600
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
4.0 REAR FUEL TANK HUS-532179022
...
32
FUEL CAP HUS-532179124
...
33
HOSE CLAMP HUS-532123487
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
38
VALUE.OIL.DRAIN HUS-532428287
...
41
STEM FUEL TANK HUS-532139277
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
72
Screws HUS-596134202
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
112
BUSHING OUTLET T HUS-532003645
