Husqvarna YTH 2046 A (954567079) (2000-11) Ride Mower

Model: YTH 2046 A (954567079) (2000-11)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
CONTROL, THROTTLE HUS-532170771
...
2
Bolts HUS-596582501
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
6
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
13
GASKET.MUFFLER HUS-532165391
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
16
Washers HUS-596238701
...
17
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
25
CONTROL, CHOKE HUS-532145996
...
26
Nut, Keps 3/8-24 Unf HUS-873920600
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
FUEL TANK 3.5G HUS-532151346
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
34
PAD-SPACER LT HUS-532106082
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
38
VALUE.OIL.DRAIN HUS-532428287
...
39
PAD IDLER TI HUS-532109227
...
40
BUSHING OUTLET T HUS-532003645
...
41
STEM FUEL TANK HUS-532139277
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
72
Screws HUS-596134201
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

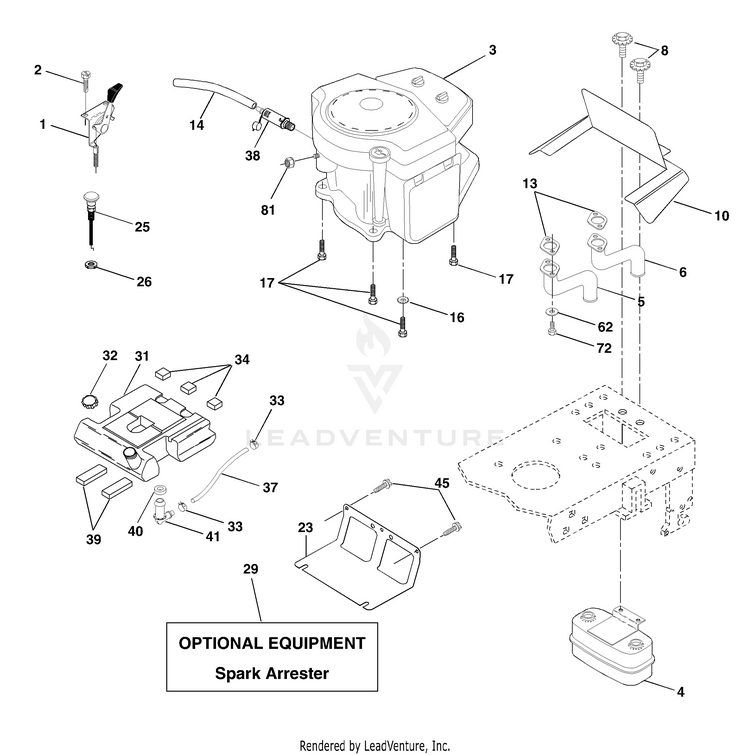

Schematic Image Zoomed
