Husqvarna YTH 2042 (96043010602) (2010-03) Ride Mower

Model: YTH 2042 (96043010602) (2010-03)

Back To Assemblies

Save Part Not Listed?
product name

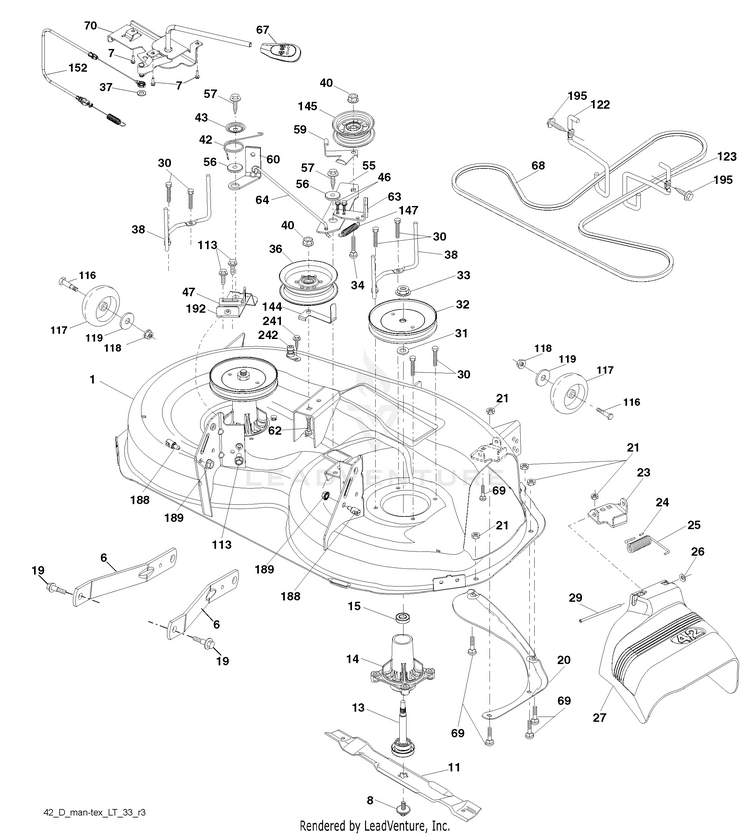

Mower Deck

...
...
1
Decks HUS-598602801
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
7
Screws HUS-596321701
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
11
42" HI-LIFT BLADE HUS-532138971
...
xx
42" MULCH BLADE HUS-594892701
...
xx
BLADE.42"MULCH.PREMIUM HUS-594893101
...
xx
BLADE.42SP"3N1 HUS-532422719
...
xx
BLADE.42SP"3N1 HUS-532422719
...
xx
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
14
BEARING HUS-532110485
...
15
BOLT.SHOULDER HUS-532196539
...
19
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
20
Hardware HUS-596040501
...
21
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
23
CAP-SLEEVE LT HUS-532105304
...
24
SPRING.TORSION.DEFLECT HUS-532197026
...
25
NUT PUSH M HUS-532110452
...
26
SHIELD.DEFLECTOR.MOWER.42"BLAC HUS-532403004
...
27
Rods HUS-595297001
...
29
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
30
WASHER.SPACER.MANDREL HUS-532187690
...
31
PULLEY.MANDREL.5.438.P HUS-532195945
...
32
Nuts HUS-596134801
...
33
GSPW Bolts HUS-596136101
...
34
PULLEY.IDLER.2006 HUS-532196106
...
36
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
37
KEEPER 42 MANDREL BELT FOR 6.2 HUS-589676103
...
38
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
40
SPRING.TORSION.BRAKE HUS-532198410
...
42
SRPING.TORSION.RETAINE HUS-532197256
...
43
SCREW.1/4-20X5/8 HUS-532137729
...
46
BRKT.CLUTCH.CABLE HUS-532197250
...
47
SERVICE KIT IDLER.ARM HUS-531169401
...
55
SPACER.RETAINER HUS-532199092
...
56
SCREW 3/8-16X1 HUS-817000616
...
57
SERVICE KIT GUARD HUS-531165901
...
59
ARMS HUS-597074201
...
60
Bolts HUS-596136301
...
62
ARM.BRAKE.ZINC HUS-532199478
...
63
LINKAGE.BRAKE.ASM.ZINC HUS-532199918
...
64
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
67
Belts HUS-598559101
...
68
Bolts HUS-596136401
...
69
CLUTCH.ASM.CABLE.HUSQ.TEX HUS-532406563
...
70
BOLT.5/16HEX.WHS.HD HUS-817000510
...
113
Bolts HUS-596434402
...
116
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
117
Nuts HUS-596322601
...
118
GSPH HUS-596134901
...
119
SERVICE KIT BELT KEEPER HUS-531169501
...
122
SERVICE KIT KEEPER BELT KEEPER HUS-531169701
...
123
SERVICE KIT BELT KEEPER HUS-531169801
...
144
PULLEY.IDLER.FLAT HUS-532177968
...
145
RETURN SPRING HUS-532401971
...
147
CABLE.CLUTCH.CABLE.W/SPRING HUS-532435110
...
152
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
188
GSPW Nuts HUS-596135701
...
189
SERVICE KIT BRACKET BRKT.BRAKE HUS-531152801
...
192
SCREW, 3/8-16X3/4 HUS-817000612
...
195
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
241
PORT.WASHOUT HUS-532415598
...
242
COUPLING.QUICK CONNECT HUS-532416405
...
xx
KIT.MANDREL.NONGREASE.TALL (Includes Housing, Shaft Assembly, And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) HUS-587819701
...
xx
Decks HUS-598602801
