Husqvarna YTH 2042 (917289610) (2010-05) Ride Mower

Model: YTH 2042 (917289610) (2010-05)

Back To Assemblies

Save Part Not Listed?
product name

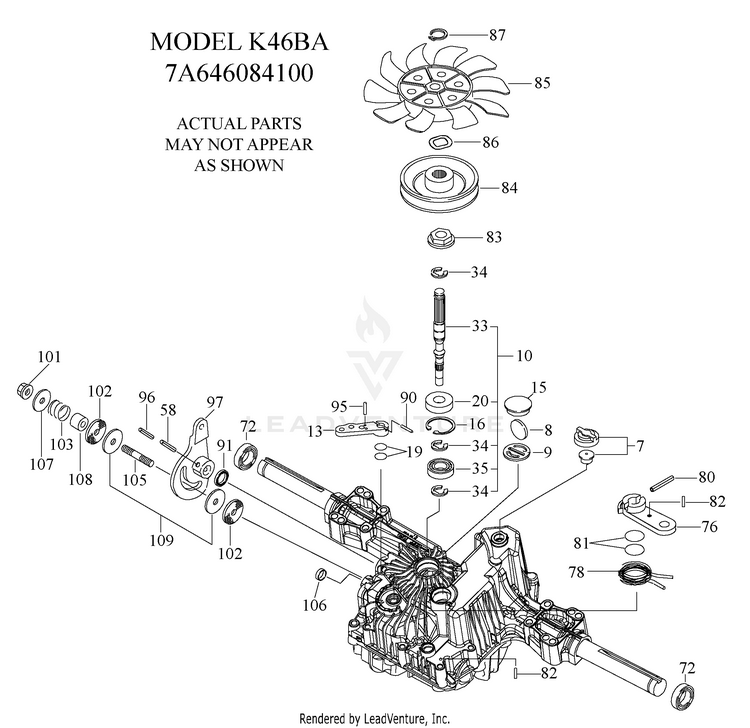

Tufftorq Transaxle

...
...
7
VALUE.VENT.15.19485924252 HUS-583348201
...
8
MAGNET.19216324360 HUS-583348301
...
9
Magnet Holder HUS-532414397
...
10
Pump Shaft/Bearing Kit HUS-532415923
...
13
LEVER.BYPASS.1A632029520 HUS-583348501
...
15
Sealing Cap 30 HUS-532414399
...
16
Snap Ring C 35 HUS-532414400
...
19
O-RING.1A.P10A.24311240100 HUS-583348801
...
20
SEAL.TC.153507 (24421153507) HUS-583345001
...
33
Pump Shaft (Standard) HUS-532414403
...
34
E-Ring 15 HUS-532414404
...
35
Bearing 6202c3 HUS-532414405
...
58
PIN.ROLL.640.22351060040 HUS-532414406
...
72
SEAL.19, 19216334280 HUS-583349301
...
76
Brake Lever HUS-532414408
...
78
SPRING.RTN.BRK.168T2036180 HUS-583349501
...
80
PIN.SPRING.5*32.22351050032 HUS-583349601
...
81
O-RING.1A.P12.24311000120 HUS-583349701
...
82
PIN SPRING 4 16 22351040016 HUS-583349801
...
83
COLLAR.SPINE.1A646025300 HUS-583349901
...
84
PULLEY.L (1A646025810) HUS-583350001
...
85
Fan, Black HUS-532414415
...
86
WASHER.WAVE.1A646083060 HUS-583350201
...
87
RING.SNAP.19215489090 HUS-583350301
...
90
PIN.3.0A.20 (22351030020) HUS-583350401
...
91
SEAL.OIL.16 HUS-583351001
...
95
PIN.SPR.3.0A HUS-583356901
...
96
PIN.ROLL.3.5 HUS-583350601
...
97
Control Lever HUS-532414421
...
101
Lock Nut 10 HUS-532414216
...
102
Washer 10 x 40 x 4 HUS-532414423
...
103
Spring HUS-532414424
...
105
Stud 10 x 60 HUS-532414425
...
106
Sealing Cap 18 HUS-532414426
...
107
Washer 10 x 36 x 2.8 HUS-532414427
...
108
Collar 10 x 20 x 17 HUS-532414428
...
109
Friction Plate Kit HUS-532414429
