Husqvarna YTH 20 F 42 T (96043003900) (2007-12) Ride Mower

Model: YTH 20 F 42 T (96043003900) (2007-12)

Back To Assemblies

Save Part Not Listed?

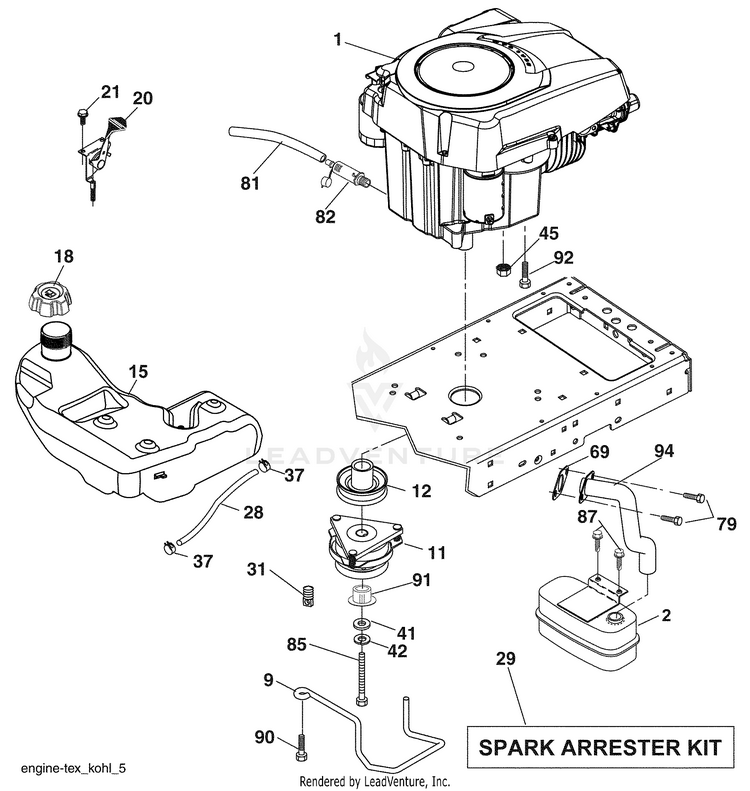

product name

Engine

...
...
2
Muffler HUS-532188665
...
9
Keepers HUS-596501502
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
15
TANK.FUEL.SIDE-FILL.3.NON-EPA HUS-532400021
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
20
CONTROL.TH/CK.COBRA.KO HUS-532401508
...
21
Screws HUS-596437001
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
PUSH CLIP HUS-532145006
...
37
HOSE CLAMP HUS-532123487
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
79
Screws HUS-596134201
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
82
VALUE.OIL.DRAIN HUS-532428287
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
87
BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877
...
90
SCREW 3/8-16X1 HUS-817000616
...
91
BUSHING.1.375OD HUS-532187495
...
92
SCREW 3/8-16X1 HUS-817120616
...
94
TUBE.EXHAUST.KOHLER.COURAGE HUS-583955301
