Husqvarna YTH 20 B 42 T (96043002000) (2006-01) Ride Mower

Husqvarna YTH 20 B 42 T (96043002000) (2006-01) Ride Mower

Model: YTH 20 B 42 T (96043002000) (2006-01)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Washer (2513009) HUS-532121749

Ring HUS-812000029

Nut Hex Flange Lock (Thrd Sp ) HUS-532409149

Washer Spring Lock HUS-596238701

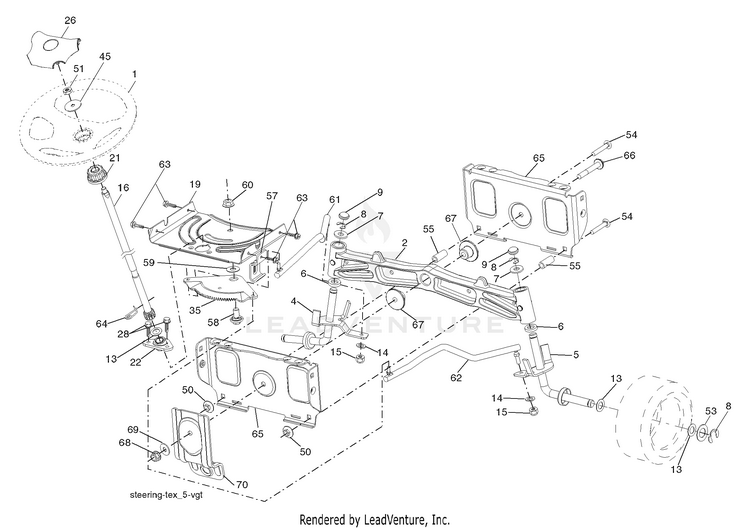

Steering Assembly

1

WHEEL.STEERING.LEGND2.GRY HUS-532186093

2

AXLE.SVC.ASM CAST IRON.TEX HUS-532413591

4

SPINDLE.WELDED.LH.15"TEX.X431 HUS-596873601

5

SPINDLE.WLDMT.RH.15INTIRE.X431 HUS-538691201

6

WASHER THRUST HUS-532006266

7

WASHER HUS-532121748

8

RING CLIP HUS-812000029

9

CAP.SPINDLE.BLACK HUS-532121232

13

WASHER HUS-532121749

14

Washers HUS-596238701

15

NUT CROWNLOCK 3/8-24 HUS-873540600

16

KIT.SRVC.STEERINGSHAFT.2HISHFT HUS-587738904

19

SERVICE KIT PLATE PLATE.STEER. HUS-531169101

21

KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905

22

KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901

26

INSERT.CAP.STRG.WH.GRAY HUS-532193652

28

SCREW, 3/8-16X3/4 HUS-817000612

35

GEAR.SECTOR.PLATE.DDL. HUS-532194732

45

WASHER 9/16"ID, 2 3/8"OD HUS-819183812

50

NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149

51

NUT.HEX.1/2-20 HUS-873940800

53

WASHER.HARDENED HUS-532188967

54

BOLT HUS-874760636

55

SPACER.BRACE.AXLE (2 2) HUS-532197636

57

BRKT.UPSTOP.GT/LT.TEX HUS-532197246

58

BOLT.SHOULDER.SECTOR.P HUS-532194747

59

WASHER.THURST.SECTOR.S HUS-532194748

60

NUT.FLANGE.LOCK.5/8-11 HUS-583612801

61

Links HUS-597047802

62

Links HUS-597047902

63

BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867

64

RETAINER.CLIP.SPRING.S HUS-532199849

65

BRACE.AXLE.FRONT.NLT/N HUS-532194734

66

BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748

67

BUSHING, AXLE HUS-529496302

68

NUT.LOCK.FLANGE.7/16 HUS-873900700

69

WASHER.1.5X.505X.118 HUS-532199162

70

BRACKET FRONT DECK SUSPENSION HUS-585338802
