Husqvarna YTH 18542 (96013000200) (2004-11) Ride Mower

Model: YTH 18542 (96013000200) (2004-11)

Back To Assemblies

Save Part Not Listed?
product name

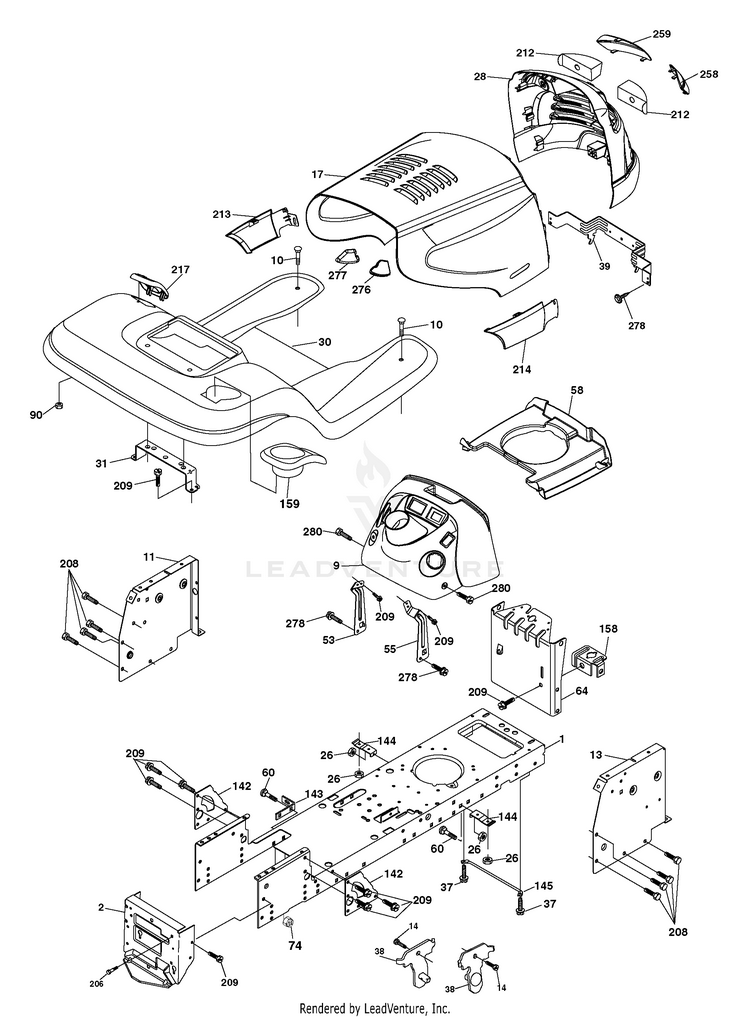

Chassis

...
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
2
DRAWBAR, 12GA HUS-532176554
...
9
DASH.PANEL.GREY HUS-532195111
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
PANEL DASH RH HUS-532181719
...
14
Bolts HUS-596564001
...
17
HOOD.ELITE.HUSQ-STEEL HUS-532188374
...
26
Nuts HUS-596322601
...
28
GRILL/LENS ASSY ( YT MODEL) (Includes Key nos. 212, 258 and 259) HUS-532188269
...
30
FENDER.W/CUPHOLDER.ORANGE HUS-532192814
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
37
Screws HUS-596030701
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
39
BRACKET PIVOT HUS-532407807
...
53
BRACKET DASH LH HUS-532188373
...
55
BRACKET DASH RH HUS-532188372
...
58
AIR DUCT P/L/LT HUS-532150127
...
60
Bolt RDHD Sqnk 3/8-16 unc x 3/4 HUS-872140606
...
64
DASH LOWER HUS-532174997
...
74
Nuts HUS-596322601
...
90
NUT.PUSH.3/16 HUS-532124346
...
142
PLATE REINFORCEMENT HUS-532175702
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
144
BRKT, FOOT REST HUS-532175582
...
145
ROD.PIVOT.HOOD HUS-532409167
...
158
BRACKET PARKING BRAKE HUS-532162037
...
159
CUPHOLDER.RIGHT.GREY HUS-532191120
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
208
Screw Thdrl 3/8-16 x 1/2 HUS-917670608
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
212
INSERT LENS HUS-532188267
...
213
SKIRT.SIDE.ELITE.LH HUS-532188266
...
214
SKIRT.SIDE.ELITE.RH.GREY HUS-532188265
...
217
CONSOLE FUEL WINDOW GRAY HUS-532179132
...
258
LENS ELITE CLEAR RH HUS-532188263
...
259
LENS.ELITE.HUSQ.CLEAR.LH HUS-532188264
...
276
BUMPER HOOD RH HUS-532189274
...
277
BUMPER HOOD LH HUS-532189275
...
278
Screws HUS-596321701
...
280
SCREW 3/8-16X1 HUS-817000616
Schematic Image Zoomed
