Husqvarna YTH 1848 XPD (954567260) (2001-12) Ride Mower

Model: YTH 1848 XPD (954567260) (2001-12)

Back To Assemblies

Save Part Not Listed?
product name

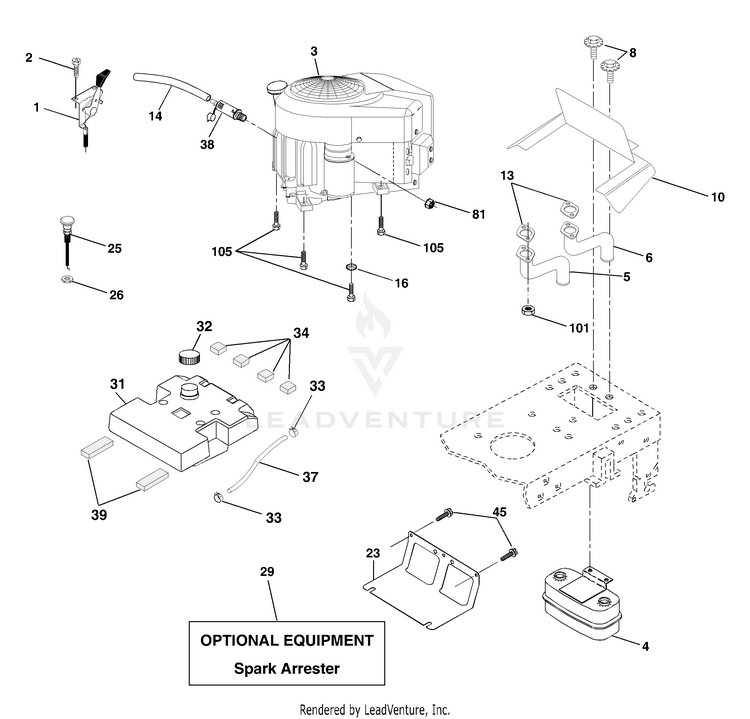

Engine

...
...
1
CONTROL, THROTTLE HUS-532170803
...
2
Screws HUS-596437001
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
EXHAUST.TUBE.LH.KAWASAKI. HUS-532176067
...
6
EXHAUST.TUBE.RH.KAWASAKI. HUS-532176068
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
16
Washers HUS-596238701
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
25
CHOKE CONTROL HUS-532132781
...
26
Nut, Keps 3/8-24 Unf HUS-873920600
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
TANK.FUEL(3.5.GAL) HUS-532157103
...
32
FUEL CAP/GAUGE HUS-532161696
...
33
HOSE CLAMP HUS-532123487
...
34
PAD-SPACER LT HUS-532106082
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
39
PAD IDLER TI HUS-532109227
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
101
Nuts HUS-596433401
...
105
SCREW 3/8-16X1 HUS-817120616
