Husqvarna YTH 180 (954830145A) (1995-10) Ride Mower

Model: YTH 180 (954830145A) (1995-10)

Back To Assemblies

Save Part Not Listed?
product name

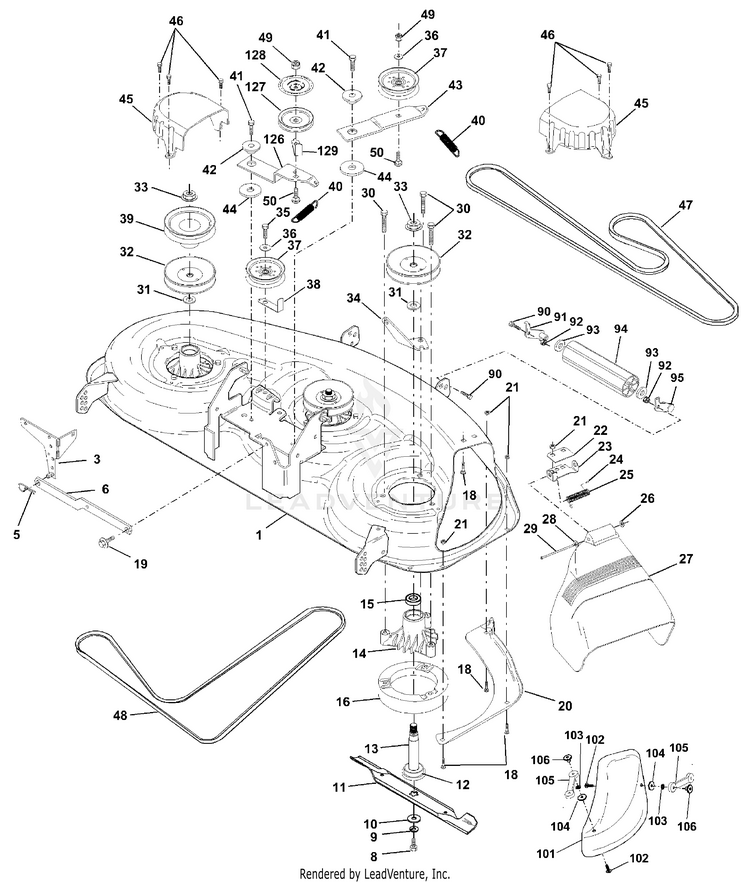

Mower Deck

...
...
1
DECK SVC 46"3 BLADE 156948X431 HUS-532176026
...
3
BRACKET SWAY BAR HUS-532138457
...
5
Retainer Spring HUS-5324939M
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
8
BLADE BOLT HUS-532850857
...
9
Washers HUS-596238701
...
10
WASHER.BLADE HUS-532140296
...
11
MULCH BLADE 46" HUS-532152443
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
13
SHAFT.ASM.W/BEARING (Includes Key No. 12) HUS-532137553
...
14
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
15
BEARING HUS-532110485
...
16
Stripper, Mower Round HUS-153240329
...
18
Bolts HUS-596136401
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531154201
...
21
Hardware HUS-596040501
...
22
STIFFENER BRACKET HUS-532134753
...
23
SERVICE KIT BRKT HUS-529845901
...
24
CAP-SLEEVE LT HUS-532105304
...
25
SPRING TORSION HUS-532123713
...
26
NUT PUSH M HUS-532110452
...
27
DEFLECTOR.CLIPPING.46" HUS-532166883
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-819111016
...
29
Rods HUS-595297001
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
MANDREL PULLEY HUS-532173434
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
ANCHOR, SPRING DECK 46" HUS-532144945
...
35
BOLT HUS-599972501
...
36
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
37
CLG HUS-597025001
...
38
Keepers HUS-597024901
...
39
PULLEY.DRIVEN.DECK.46" HUS-532144917
...
40
SPRING.SEC.44"VEN HUS-532137273
...
41
BOLT HUS-874760620
...
42
SPACER.RETAINER.MOWER HUS-532165723
...
43
ARM IDLER DECK 46" HUS-532144949
...
44
WASHER HUS-532178515
...
45
COVER MANDREL 46 HUS-532145059
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
47
BELT V SECONDARY HUS-532144959
...
48
V-BELT PRIMARY 50" HUS-532148763
...
49
Nuts HUS-596322601
...
50
GSPW Bolts HUS-596136101
...
90
Bolts HUS-596564401
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
92
Nuts HUS-596322601
...
93
Washer 17/32 x 7/8 x 16 Ga. HUS-819171416
...
94
NOSE ROLLER HUS-532132264
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
101
COVER.MULCH.46"3-BLADE.(2 2) HUS-532145579
...
102
Screws HUS-596039001
...
103
LOCKWASHER #10 HUS-810071000
...
104
WASHER HUS-819061216
...
105
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
106
Nut, Weld HUS-53202029J
...
116
Bolts HUS-596434404
...
117
WHEEL GAGE DONUT HUS-532133957
...
118
Nuts HUS-596322601
...
119
GSPH HUS-596134901
...
126
ARM IDLER PRIM 46 HUS-532144948
...
127
PULLEYS HUS-593787801
...
128
SHIELD IDLER HUS-532137789
...
129
HOLDER HUS-532146881
