Husqvarna YTH 180 (954140010H) (1999-03) Ride Mower

Model: YTH 180 (954140010H) (1999-03)

Back To Assemblies

Save Part Not Listed?
product name

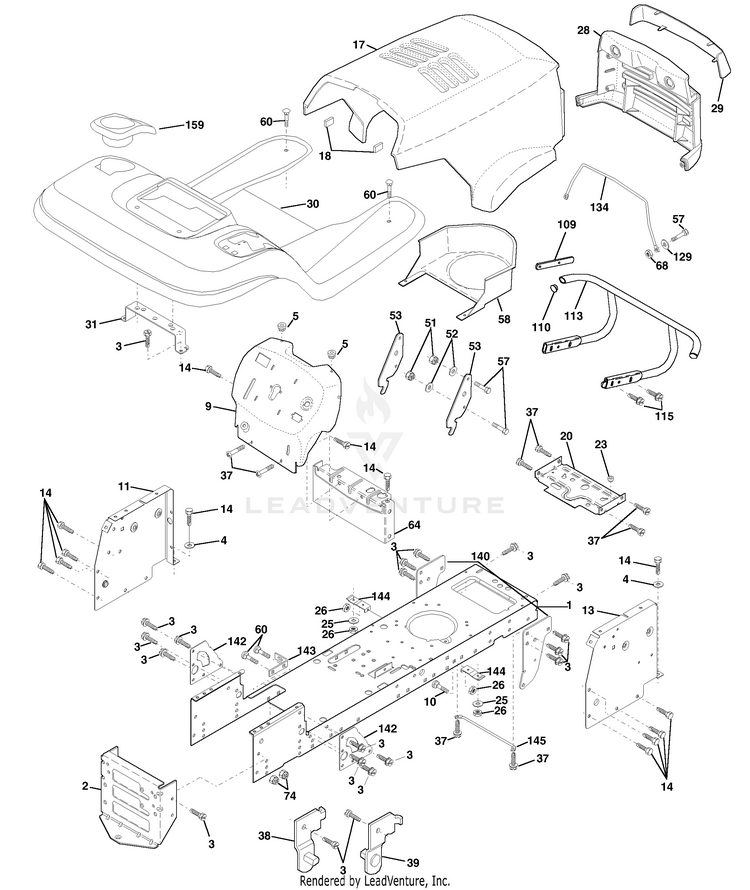

Chassis And Enclosures

...
...
1
CHASSIS HUS-532166819
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
4
Washer 13/32 x 3/4 x 16 Ga. HUS-819131216
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
9
DASH/SILKSCREENED HUS-532154794
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
PANEL HUS-532153913
...
14
Bolts HUS-596564001
...
17
HOOD - LT/YT HUS-532156051
...
18
BUMPER HOOD T HUS-532126938
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
25
GSPH HUS-596134901
...
26
Nuts HUS-596322601
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
30
KIT.FENDER.PNT.STL.W/CPH. HUS-583713401
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
37
Screws HUS-596030701
...
38
BRACKET LH PIVOT HUS-532139886
...
39
BRACKET RH PIVOT HUS-532139887
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
52
Washers HUS-596135301
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
57
Screws HUS-596230901
...
58
AIR DUCT HUS-532151171
...
60
Bolt Rdhd Sqnk 3/8-16unc x 3/4 HUS-872140606
...
64
DASH LOWER HUS-532154798
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
74
Nuts HUS-596322601
...
109
BUMPER BRACKET HUS-532170310
...
110
PLUG PLASTIC HUS-532143679
...
113
BUMPER ASM. HUS-532170311
...
115
BOLT HUS-874760620
...
129
Washers HUS-596582301
...
134
ROD SUPPORT HOOD LT/PL HUS. HUS-532160219
...
140
BRACKET SUSPENSION FRONT HUS-532158418
...
142
PLATE REINFORCEMENT HUS-532175702
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
144
BRKT, FOOT REST HUS-532175582
...
145
ROD.PIVOT.HOOD HUS-532409167
...
159
CUPHOLDER, BLK HUS-532155123
