Husqvarna YTH 180 (954001082B) (1994-12) Ride Mower

Model: YTH 180 (954001082B) (1994-12)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
CONTROL.THROTTLE HUS-532143443
...
2
Bolts HUS-596582501
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
MANIFOLD TUBE LH HUS-532136215
...
6
MANIFOLD TUBE RH HUS-532136216
...
7
CLIP T HUS-532002751
...
8
BRACKET MUFFLER HUS-532122439
...
9
Screws HUS-596437001
...
10
SHIELD HEAT LT HUS-532145552
...
11
WASHER SPRING LOCK WASHER WITH (Order from Engine Manufacturer) HUS-596238801
...
12
Bolt, Fin Hex 1/4-20 x 3/4 (Order from Engine Manufacturer) HUS-874570512
...
14
Nipple Pipe 3/8 Npt X 4-1/2" HUS-813280336
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
Washers HUS-596238701
...
17
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
23
HEAT SHIELD HUS-532128953
...
24
SCREW HUS-817021008
...
25
CHOKE CONTROL HUS-532132781
...
26
NUT HUS-873610600
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
FUEL TANK 3.5G HUS-532151346
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
34
PAD-SPACER LT HUS-532106082
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
36
GSPH HUS-596134901
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
39
PAD IDLER TI HUS-532109227
...
40
BUSHING OUTLET T HUS-532003645
...
41
STEM FUEL TANK HUS-532139277
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

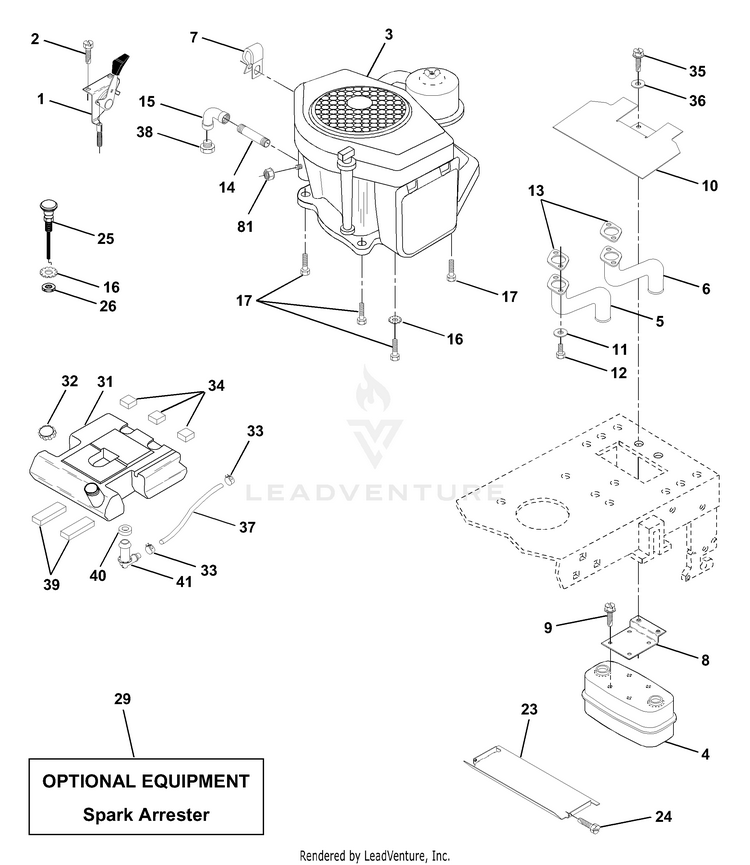

Schematic Image Zoomed
