Husqvarna YTH 180 (954001082B) (1994-12) Ride Mower

Model: YTH 180 (954001082B) (1994-12)

Back To Assemblies

Save Part Not Listed?
product name

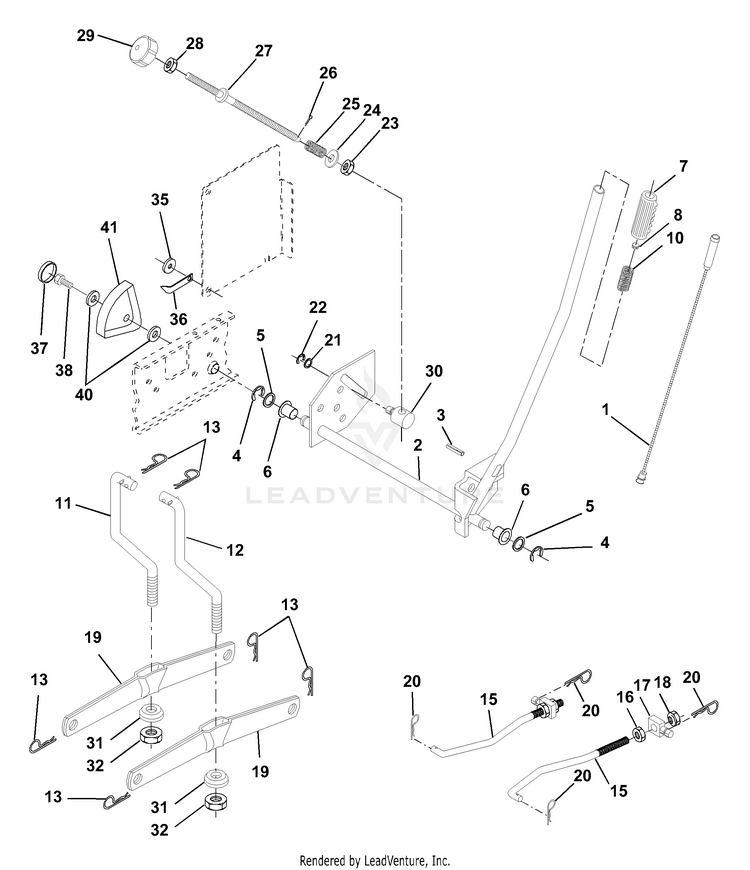

Mower Lift Assembly

...
...
1
WIRE.ASM.INNER.SP HUS-532159461
...
2
SHAFT ASM LIFT RH HUS-532136968
...
3
PIN GROOVE HUS-532138284
...
4
RETAINING RING LT HUS-812000002
...
5
WASHER HUS-819211621
...
6
BEARING.NYLON HUS-532120183
...
7
GRIP HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
10
SPRING, COMP T HUS-532122512
...
11
LIFT LINK LH HUS-532145537
...
12
LIFT LINK RH HUS-532145536
...
13
RETAINER-SPRNG RB HUS-532124670
...
15
FRONT LINK HUS-532127218
...
16
Nuts HUS-596433401
...
17
TRUNNION HUS-532175689
...
18
GSPW NUTS HUS-596135601
...
19
SERVICE KIT ARM ARM.REAR.SUSPE HUS-531165801
...
20
SPRING RETAINER HUS-532003146
...
21
Washer 15/32 X 3/4 X 16 Ga HUS-819151216
...
22
Ring Klip #t5304-37 HUS-812000037
...
23
NUT T HUS-532110807
...
24
WASHER HUS-819131016
...
25
SPRING.COMP.INF.H HUS-532137150
...
26
Pins HUS-596917601
...
27
ROD.LIFT.ADJUSTABLE HUS-532137167
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
29
KNOB INF 3/8-16 HUS-532138057
...
30
TRUNION LT HUS-532110810
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
32
NUT CROWNLOCK 3/8-24 HUS-873540600
...
35
WASHER T HUS-532120529
...
36
HEIGHT INDICATOR PNTR HUS-532123933
...
37
PLUG,HOLE HUS-532123935
...
38
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
40
WASHER HUS-819112410
...
41
HEIGHT INDICATOR HUS-532123934
