Husqvarna YTH 1746 A (954567055) (2000-11) Ride Mower

Model: YTH 1746 A (954567055) (2000-11)

Back To Assemblies

Save Part Not Listed?
product name

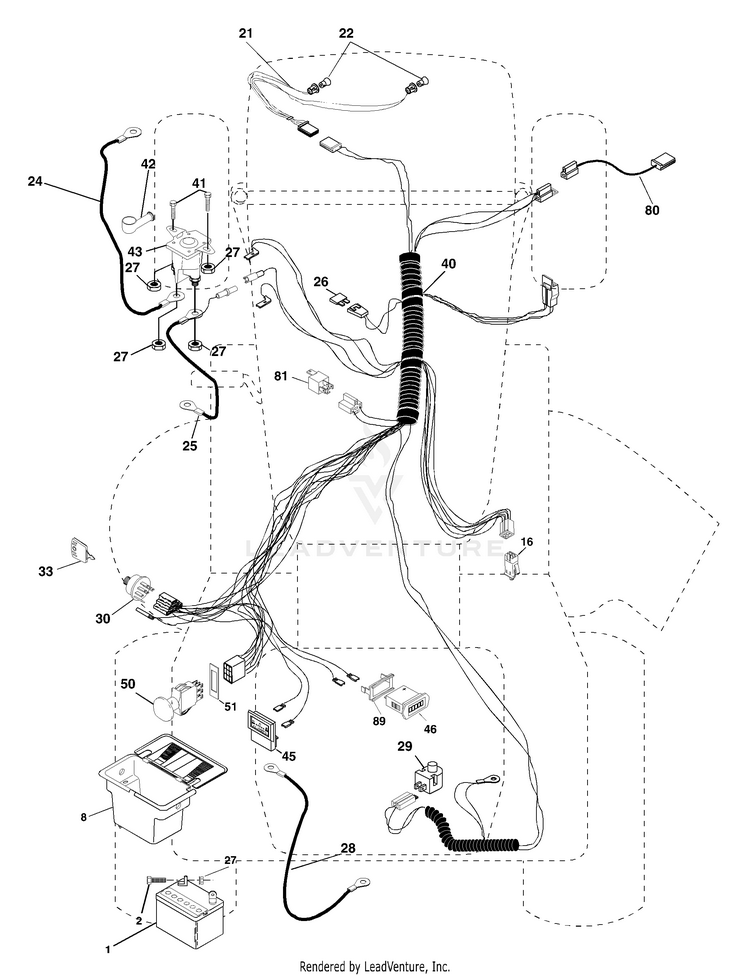

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS HUS-532166181
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY HUS-532146147
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE T HUS-532004207
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
30
IGNITION SWITCH HUS-532175566
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HARNESS IGN. HUS-532179724
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
45
AMMETER HUS-532122822
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
51
FRAME RETAINING RING HUS-532140405
...
80
HARNESS, CLUTCH HUS-532146685
...
81
RELAY.ASSY.T HUS-532109748
...
89
BRACKET SNAP-IN HOURMETER HUS-532169639
