Husqvarna YTH 1542 XPC (954567253) (2001-12) Ride Mower

Husqvarna YTH 1542 XPC (954567253) (2001-12) Ride Mower

Model: YTH 1542 XPC (954567253) (2001-12)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Washer Plain Washer 3/8 X 7/8 HUS-596134901

Nut Hexagon Crown Lock Nut 3/8 HUS-596322601

Screw Hex Wsh Thdrol 3/8-16 Bl HUS-817000612

Bolt Shoulder 5/16-18 Tt HUS-532170165

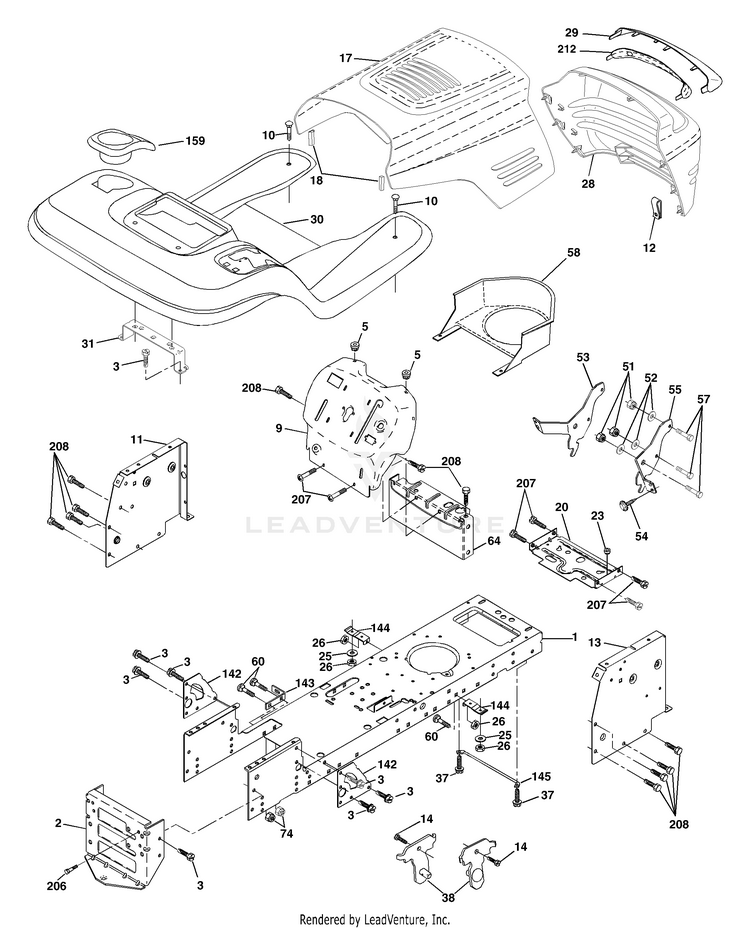

Chassis And Enclosures

1

KITS.CHASSIS.STAMPED.SERVICE HUS-579841401

2

DRAWBAR, 12GA HUS-532176554

3

SCREW, 3/8-16X3/4 HUS-817000612

5

BUMPER.RUBBER.HOOD HUS-532155272

9

DASH SLKSCRN. HUS-532168346

10

Bolts HUS-596728201

11

PANEL.DASH.LH.LTX HUS-532174996

12

CLIP HUS-532145660

13

PANEL ASM, DASH RH HUS-532172106

14

Bolts HUS-596564001

17

HOOD.STEEL.LT.ORANGE HUS-532159639

18

BUMPER HOOD T HUS-532126938

20

PLATE MTG.BATTERY/FUEL TANK HUS-532180679

23

BUSHING.SNAP.NYL.BLK. HUS-532124028

25

GSPH HUS-596134901

26

Nuts HUS-596322601

28

GRILLE/LENS ASM HUS-532179845

29

GRILLE.LENS HUS-532146654

30

KIT.FENDER.PNT.STL.W/CPH. HUS-583713401

31

BRACKET.SUPPORT.FENDER HUS-532139976

37

Screws HUS-596030701

38

BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710

51

NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602

52

Washers HUS-596135301

53

BRACKET.GRILLE.LH HUS-532144697

54

SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464

55

BRACKET HUS-532144696

57

Screws HUS-596230901

58

DUCT, INTAKE AIR HUS-532174930

60

Bolt RDHD SQNK 3/8-16 x 3/4 HUS-872140606

64

DASH LOWER HUS-532154798

74

Nuts HUS-596322601

142

PLATE REINFORCEMENT HUS-532175702

143

BRACKET, SWAYBAR CHASSIS HUS-532186689

144

BRKT, FOOT REST HUS-532175582

145

ROD.PIVOT.HOOD HUS-532409167

159

CUPHOLDER, BLK HUS-532155123

206

SHOULDER BOLT 5/16-18TT HUS-532170165

207

SCREW, 5/16-18 X 1/2 HUS-817670508

208

SCREW 3/8-16X1/2 HUS-817670608

212

INSERT, LENS HUS-532174503
