Husqvarna YTH 1542 A (954567048) (2000-11) Ride Mower

Model: YTH 1542 A (954567048) (2000-11)

Back To Assemblies

Save Part Not Listed?
product name

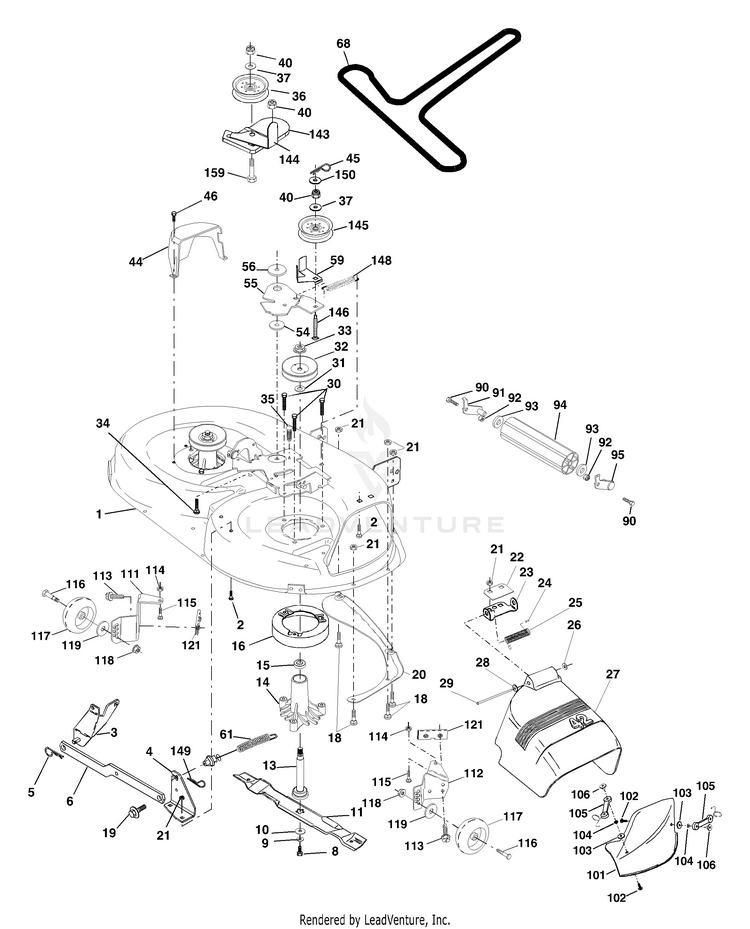

Mower Deck

...
...
1
DECAL, FENDER HUS-532176822
...
2
GSPW Bolts HUS-595901601
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
4
BRACKET SWAY BAR 42" DECK HUS-532165460
...
5
RETAINER-SPRNG RB HUS-532124670
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
8
BLADE BOLT HUS-532850857
...
9
Washers HUS-596238701
...
10
WASHER.BLADE HUS-532140296
...
11
42" HI-LIFT BLADE HUS-532138971
...
11
42" MULCH BLADE HUS-594892701
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
15
BEARING HUS-532110485
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
18
Bolts HUS-596136401
...
19
BOLT SHD 5/16-18 HUS-532132827
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
21
Hardware HUS-596040501
...
22
STIFFENER BRACKET HUS-532134753
...
23
SERVICE KIT BRKT HUS-529845901
...
24
CAP-SLEEVE LT HUS-532105304
...
25
SPRING TORSION HUS-532123713
...
26
NUT PUSH M HUS-532110452
...
27
SHIELD.DEFLECTOR.MOWER.42".BLK HUS-532130968
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-819111016
...
29
Rods HUS-595297001
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
32
PULLEY MANDREL HUS-532173436
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
Bolts HUS-596136201
...
35
FASTENER.XMAS.TREE HUS-532133835
...
36
CLG HUS-597025001
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
40
Nuts HUS-596322601
...
44
GUARD MANDREL LH BLACK HUS-532140088
...
45
RETAINER M HUS-532004497
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
54
WASHER HUS-532178515
...
55
SERVICE KIT ARM ARM IDLER 42" HUS-531166601
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
59
SERVICE KIT GUARD HUS-531165901
...
61
SPRING EXT ELEC CLUTCH HUS-532174882
...
68
BELT V SECONDARY HUS-532144959
...
90
Bolts HUS-596564401
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
92
Nuts HUS-596322601
...
93
Washer 17/32 x 7/8 x 16 Ga. HUS-819171416
...
94
NOSE ROLLER HUS-532132264
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
101
COVER MULCH 42" HUS-532136420
...
102
Screws HUS-596039001
...
103
WASHER HUS-819061216
...
104
LOCKWASHER #10 HUS-810071000
...
105
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
106
Nuts HUS-596987401
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
113
Screw Tapping 5/16-18 Unc HUS-817060514
...
114
Hardware HUS-596040501
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
116
PAD, FOOT PEDAL HUS-510089501
...
117
WHEEL.GAUGE.STANDARD HUS-532165746
...
118
Nuts HUS-596322601
...
119
GSPH HUS-596134901
...
121
BRACKET.EXTRUDED.GAGE.WHEEL HUS-532143723
...
143
SERVICE KIT BRACKET HUS-529844301
...
144
KEEPER BELT 42" CLUTCH HUS-532173441
...
145
PULLEY.IDLER.FLAT.PLATED HUS-532173437
...
146
BOLT CARRIAGE IDLER HUS-532173443
...
148
IDLER RETURN SPRING HUS-532169022
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
150
Washers HUS-596204201
...
159
Bolts HUS-596987501
...
xx
KIT.MANDREL.ASM.3.BOLT (Includes Key Numbers 8-10, 13-15, 31 and 32) HUS-532130794
...
xx
SERVICE DECK KIT 42" NON-TEX Complete (Standard Deck, Order Separately Noseroller, Mulcher Plate and Gauge Wheel Components, Key Nos. 90-95, 101- 106 and 111-121) HUS-548102301
