Husqvarna YTH 150 (954140007D) (1998-02) Ride Mower

Model: YTH 150 (954140007D) (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

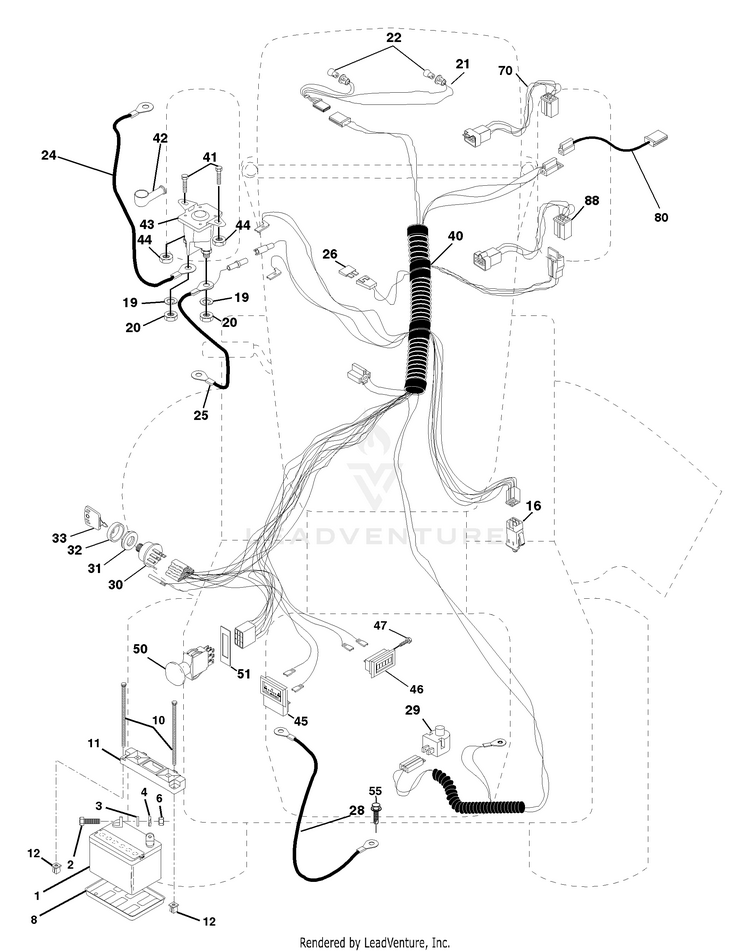

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
3
Washers HUS-596582301
...
4
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
6
NUT.HEX..25-20.UNC HUS-532050675
...
8
TRAY.BATTERY HUS-532007603
...
10
BATTERY TIEDOWN KIT HUS-532150177
...
11
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
12
BATTERY TIEDOWN KIT HUS-532150177
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
19
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
21
HARNESS LIGHT SOCKET HUS-532136850
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY 6 GA 22" W/16W HUS-532146148
...
26
FUSE HYT HUS-532108824
...
28
CABLE GROUND 6 GA 21" 90T BLK HUS-532145491
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
30
SWITCH.IGNITION.4.POSITION HUS-532140301
...
31
NUT IGNITION HUS-532124211
...
32
COVER SWITCH KEY HUS-532141226
...
33
KEY.MOLDED.GENERIC HUS-532122147
...
40
WIRING HARNESS HUS-532160719
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
44
Nut Keps Hex 1/4-20 Unc HUS-873640400
...
45
AMMETER HUS-532122822
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
47
Screw 10-24 x 1/2 Black HUS-817011008
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
51
FRAME RETAINING RING HUS-532140405
...
55
Screws HUS-596030701
...
70
HARNESS ENG. KOHLER HUS-532142621
...
80
HARNESS, CLUTCH HUS-532146685
...
81
RELAY.ASSY.T HUS-532109748
...
88
HARNESS ENG. KOHLER HUS-532142621
