Husqvarna YTA19K42 - 96048006802 (2018-08) Riding Tractor

Model: YTA19K42 - 96048006802 (2018-08)

Back To Assemblies

Save Part Not Listed?
product name

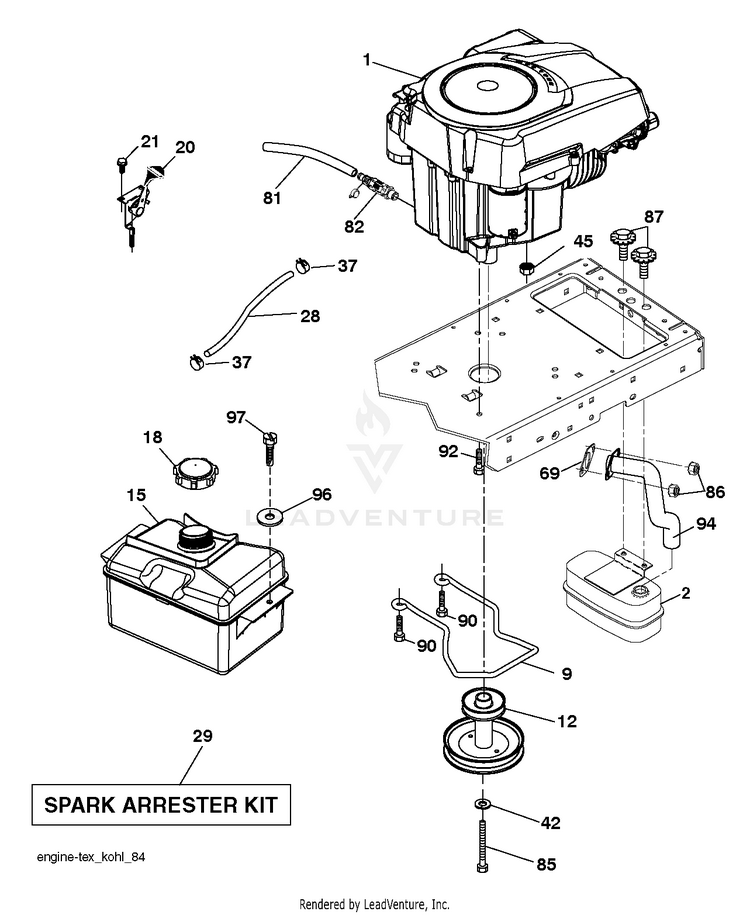

ENGINE

...
...
94
TUBE.EXHAUST.KOHLER 5400 HUS-590800701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
82
VALUE.OIL.DRAIN HUS-532428287
...
15
FUEL TANK ASSEMBLY 2.5 GAL HUS-597954504
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
37
HOSE CLAMP HUS-532123487
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
20
CONTROL.TH/CK.COBRA.KO HUS-532401508
...
96
Washers HUS-596135301
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
90
SCREW 3/8-16X1 HUS-817000616
...
21
Screws HUS-596321701
...
9
KEEPER.BELT.ENG.3.25"2BOLT.PNT HUS-582540302
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
12
PULLEY.ENGINE HUS-586729001
...
92
SCREW 3/8-16X1 HUS-817120616
...
42
Washers HUS-596238901
...
1
ENGINE KOHLER MODEL NUMBER KS590-3022 (595892901) HUS-000000000
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
2
MUFFLER.ASM.SINGLE HUS-590645302
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
