product name

Husqvarna YTA19K42 - 96048006802 (2018-08) Riding Tractor

Model: YTA19K42 - 96048006802 (2018-08)

Back To Assemblies

Save Part Not Listed?
product name

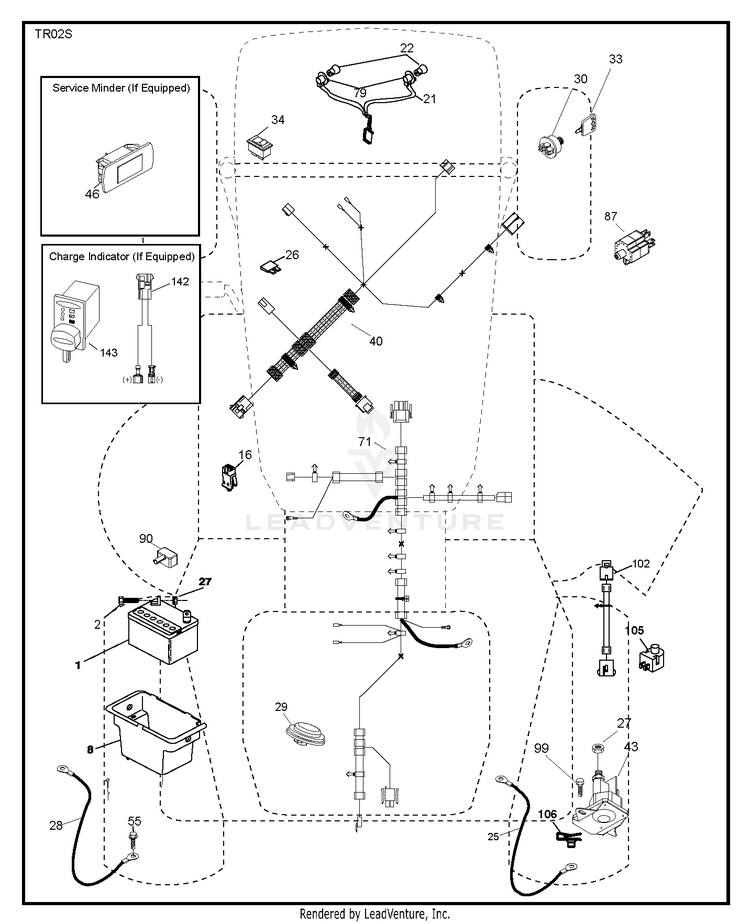

ELECTRICAL

...
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
105
REVERSE SWITCH HUS-532407568
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
22
LIGHTBULB HUS-532004152
...
102
HARNESS.PIGTAIL.VARIATOR.SD HUS-581023401
...
25
CABLE.BATT.RED.8GA.17 HUS-581498001
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101
...
43
Solenoids HUS-582042802
...
87
SWITCH.INTRLCK.CLUTCH. HUS-532197802
...
106
1/4-20 U NUT HUS-532174814
...
8
BOX.BATTERY.MNT.REAR.L HUS-532193228
...
99
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
79
BULB HOLDER ASM. HUS-532175242
...
71
HARNESS.CHASSIS.RRBATT.RDYSTRT HUS-501133701
...
28
CABLE.GROUND.REAR.BATTERY.8GA HUS-583390701
...
26
FUSE 20AMP HUS-532175158
...
34
SWITCH LT HUS-532110712
...
40
HARNESS.TEX.DASH.MAN.REAR BATT HUS-581023101
