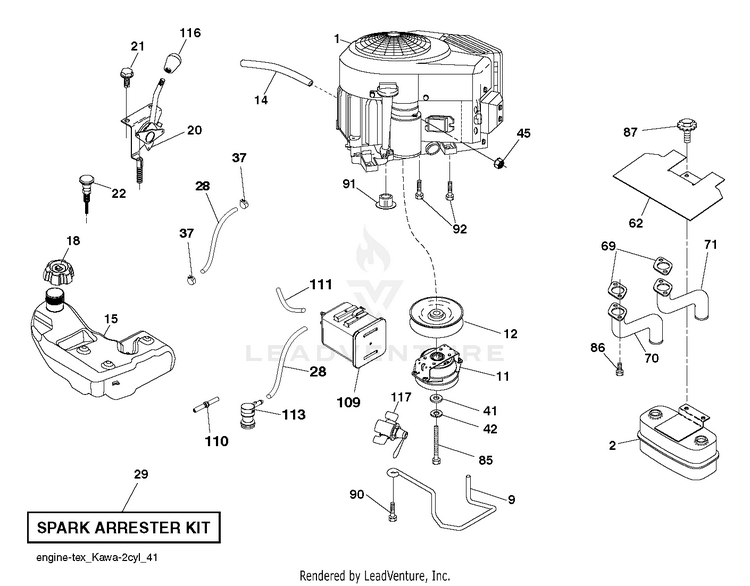

Husqvarna YT48 XLS - 96043015600 (2012-09) Riding Tractor

Model: YT48 XLS - 96043015600 (2012-09)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
18
CAP.ASM.FL.RITCH.3"E10.SYM.498 HUS-532439208
...
41
WASHER HUS-532126197
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
1
ENGINE KAWASAKI MODEL NO. FR730-AS12 (445364) HUS-000000000
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
111
PURGE.LINE.36"REAR.CALIFORNIA HUS-532420718
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
69
GASKET HUS-532178151
...
37
HOSE CLAMP HUS-532123487
...
92
SCREW 3/8-16X1 HUS-817120616
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
117
VALVE FUEL RESERVE HUS-532420828
...
15
TANK ASSY W/CAP 4 GAL REAR EPA HUS-529999002
...
109
CANNISTER, CARBON HUS-532414114
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
91
BUSHING.1.375OD HUS-532187495
...
9
Keepers HUS-596501502
...
90
SCREW 3/8-16X1 HUS-817000616
...
87
BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
113
VALVES HUS-597791601
...
110
VALVE.ASM.ANTI-SLOSH HUS-532414118
...
42
Washers HUS-596238901
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
116
KNOB - SHIFT HUS-539132624
...
21
Screws HUS-596321701
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
