Husqvarna YT42LS - 96043020200 (2014-10) Tractors/Ride Mower

Model: YT42LS - 96043020200 (2014-10)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
116
GSPW Nuts HUS-596135701
...
153
RETAINER M HUS-532004497
...
166
NUT.PUSH.625 HUS-532429164
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
35
Rods HUS-583864502
...
143
Screws HUS-596030701
...
1
TRANSAXLE TUFFTORQ K46 CR (501051401) HUS-000000000
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
73
Bolts HUS-596136501
...
209
Rods HUS-596869801
...
205
WASHER HUS-532121748
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
336
Bolts HUS-587259602
...
284
NUT.U-CHNL.1/4-20.550DP.350PNL HUS-532417693
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
42
PAD, FOOT PEDAL HUS-510089501
...
171
Bolts HUS-596136301
...
307
SCREW.MACHINE.CR.1/4-20 HUS-874180412
...
185
BOLT HUS-872110622
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
208
Gears HUS-596564101
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
207
Latch HUS-587031402
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
215
PEDAL.COVER.REVERSE.CRD.X428BK HUS-586606502
...
2
SQUARE KEY HUS-532123583
...
227
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
197
Stop HUS-585658602
...
37
WASHER.HARDENED HUS-532188967
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
29
ROD.BRAKE.K46 HUS-532403806
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
214
PEDAL.FORWARD.HUSQVARNA.DEALER HUS-532416863
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
186
SPACER.RETAINER HUS-532194321
...
161
SPRING, RETURN LT HUS-532105709
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
92
Screws HUS-595305701
...
211
BEARING.NYLON HUS-532120183
...
33
E-RING LT HUS-812000001
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
163
Rods HUS-593861001
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
187
Washers HUS-596135501
...
325
BRACKET TORQUE STRAP HUS-585668505
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
160
GSPW Retainers HUS-596029401
...
56
Belts HUS-592855201
...
326
BRACKET TORQUE STRAP HUS-585670803
...
49
Bolts HUS-596136201
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
183
SPACER AXLE HUS-532137057
...
196
SCREW 3/8-16X1 HUS-817000616
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
99
ROD.SPRING.BYPASS.K46.LT.Z HUS-532415742
...
159
Pins HUS-596029501

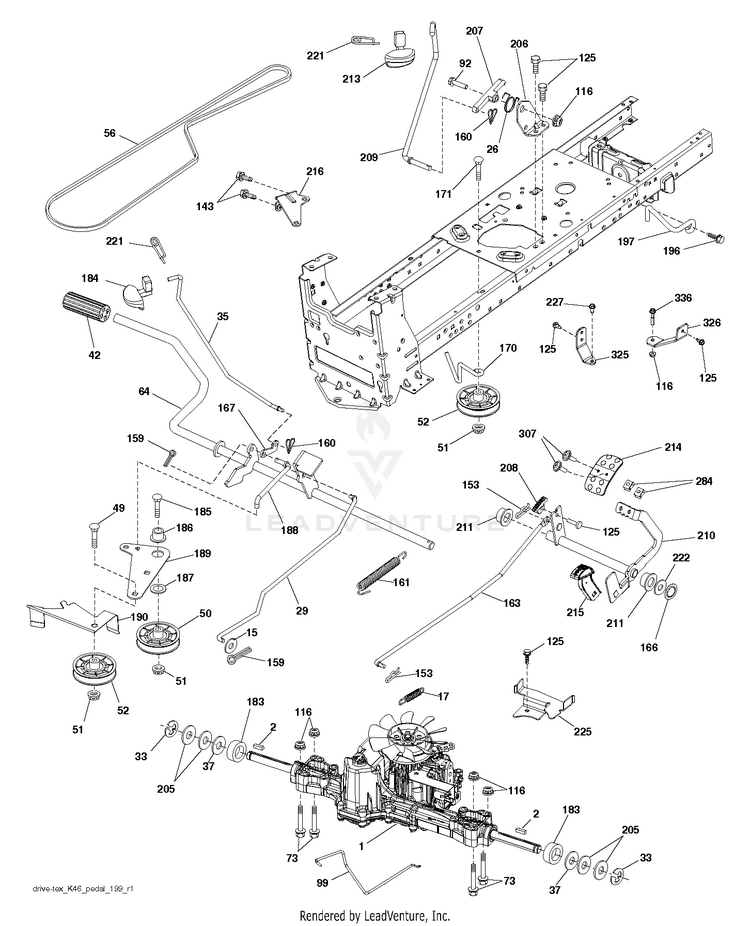

Schematic Image Zoomed
