Husqvarna YT42DXLS - 96043026300 (2017-09) Riding Tractor

Model: YT42DXLS - 96043026300 (2017-09)

Back To Assemblies

Save Part Not Listed?
product name

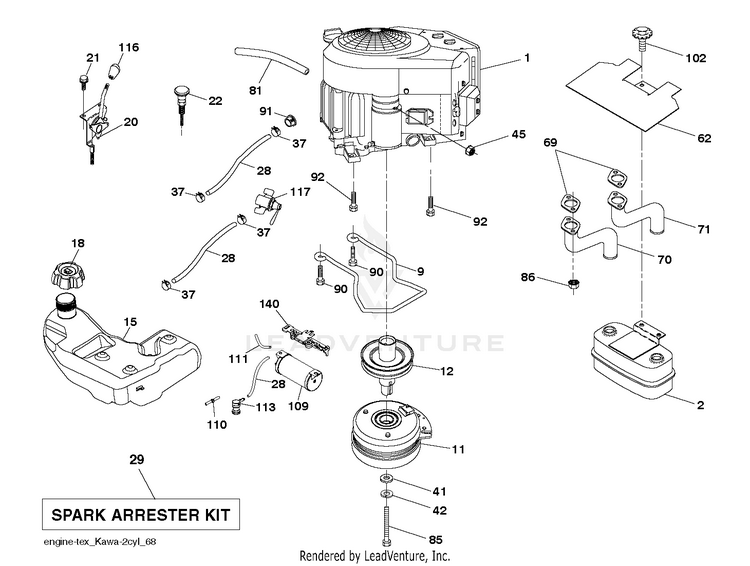

ENGINE

...
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
110
VALVE.ASM.ANTI-SLOSH HUS-532414118
...
109
CANISTER CARB, FLEX TECH, 6.3 HUS-585977401
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
12
PULLEY.EXTENDED.SHAFT.GROUND HUS-586899601
...
1
Engine Kawa FR651V-AS28R (593006001) (Order parts from engine manufacturer.) HUS-000000000
...
11
CLUTCH. 5.0 PD. 2.5 OFFSET HUS-587255001
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
85
BOLT.HEX.7/16-20X5.GR5.GREEN HUS-501606701
...
21
Screws HUS-596321701
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
42
Washers HUS-596238901
...
116
KNOB - SHIFT HUS-539132624
...
113
VALVES HUS-597791601
...
69
GASKET HUS-532178151
...
111
Hoses HUS-587044580
...
90
SCREW 3/8-16X1 HUS-817000616
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
15
TANK ASSY W/CAP REAR CARB HUS-599306202
...
9
Keepers HUS-596501502
...
37
HOSE CLAMP HUS-532123487
...
92
SCREW 3/8-16X1 HUS-817120616
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
18
CAP ASSY FUEL 3" GRAY HUS-585124801
...
117
VALVE FUEL RESERVE HUS-532420828
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
91
BUSHING.1.375OD HUS-532187495
...
140
BRACKET BRACKET, CARBON CAN, F HUS-585977301
...
41
WASHER HUS-532126197
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
