Husqvarna YT42DXLS - 96043020300 (2014-10) Riding Tractor

Model: YT42DXLS - 96043020300 (2014-10)

Back To Assemblies

Save Part Not Listed?
product name

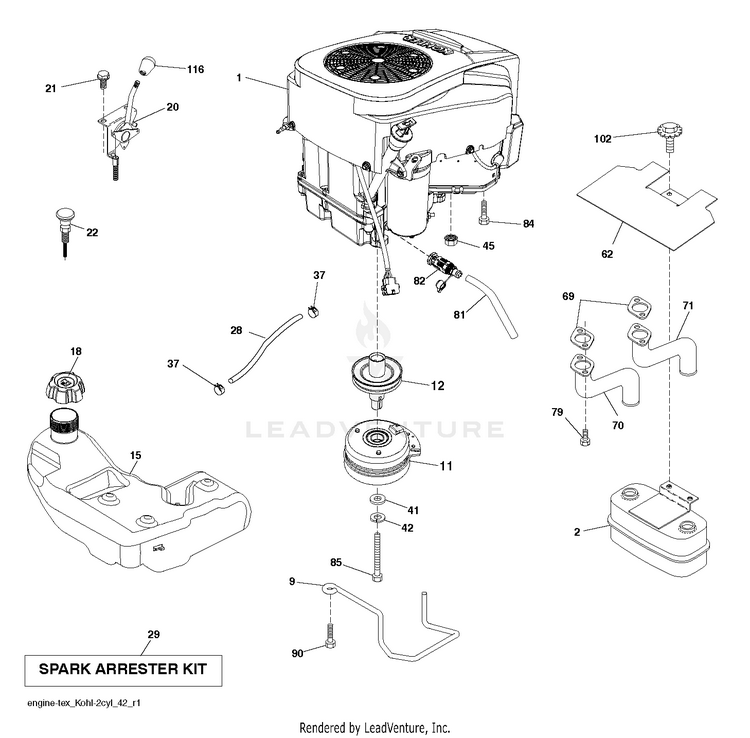

ENGINE

...
...
11
CLUTCH. 5.0 PD. 2.5 OFFSET HUS-587255001
...
116
KNOB - SHIFT HUS-539132624
...
85
BOLT.HEX.7/16-20X5.GR5.GREEN HUS-501606701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
37
HOSE CLAMP HUS-532123487
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
12
PULLEY.EXTENDED.SHAFT.GROUND HUS-586899601
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
15
FUEL TANK, 3GAL, 2.25"NECK, 20 HUS-599306004
...
82
VALUE.OIL.DRAIN HUS-532428287
...
21
Screws HUS-596321701
...
9
Keepers HUS-596501502
...
18
CAP ASSY FUEL 3" GRAY HUS-585124801
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
79
Screws HUS-596134201
...
20
CONTROL.THROTTLE.PRO.KOHLER HUS-532426184
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
84
SCREW 3/8-16X1 HUS-817120616
...
69
GASKET HUS-532178151
...
90
SCREW 3/8-16X1 HUS-817000616
...
1
ENGINE KAWA MODEL NO. FR691-ES15(581557501) HUS-000000000
