Husqvarna YT42CS - 96043022200 (2015-12) Tractors/Ride Mower

Model: YT42CS - 96043022200 (2015-12)

Back To Assemblies

Save Part Not Listed?
product name

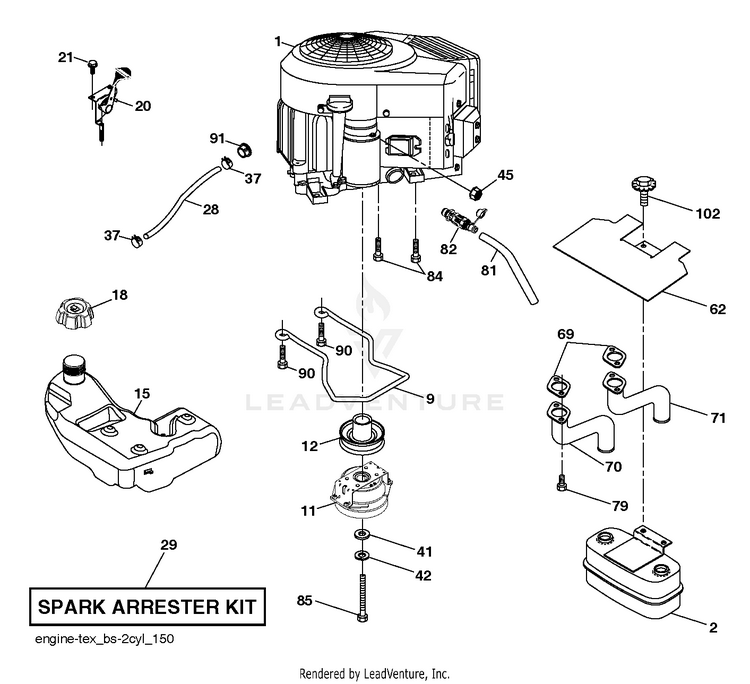

ENGINE

...
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
20
CONTROL.TH/CK.COBRA.B&S.TWN.BK HUS-532423502
...
82
VALUE.OIL.DRAIN HUS-532428287
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
90
SCREW 3/8-16X1 HUS-817000616
...
41
WASHER HUS-532126197
...
21
Screws HUS-596321701
...
79
Screws HUS-596134202
...
85
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
1
ENGINE B&S MODEL NO. 44S677-0031-G1 (582077201) HUS-000000000
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
15
FUEL TANK, 3GAL, 2.25"NECK, 20 Fits 2.75" filler neck HUS-599306004
...
18
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
84
SCREW.3/8-16 HUS-817060620
...
11
CLUTCH.OGURA.4.4PD.GT1.5-EH13V HUS-587241501
...
9
Keepers HUS-596501502
...
69
GASKET.MUFFLER HUS-532165391
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
42
Washers HUS-596238901
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
37
HOSE CLAMP HUS-532123487
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
18
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
91
BUSHING.1.375OD HUS-532187495
