Husqvarna YT42 XLS - 96043015400 (2012-09) Riding Tractor

Model: YT42 XLS - 96043015400 (2012-09)

Back To Assemblies

Save Part Not Listed?
product name

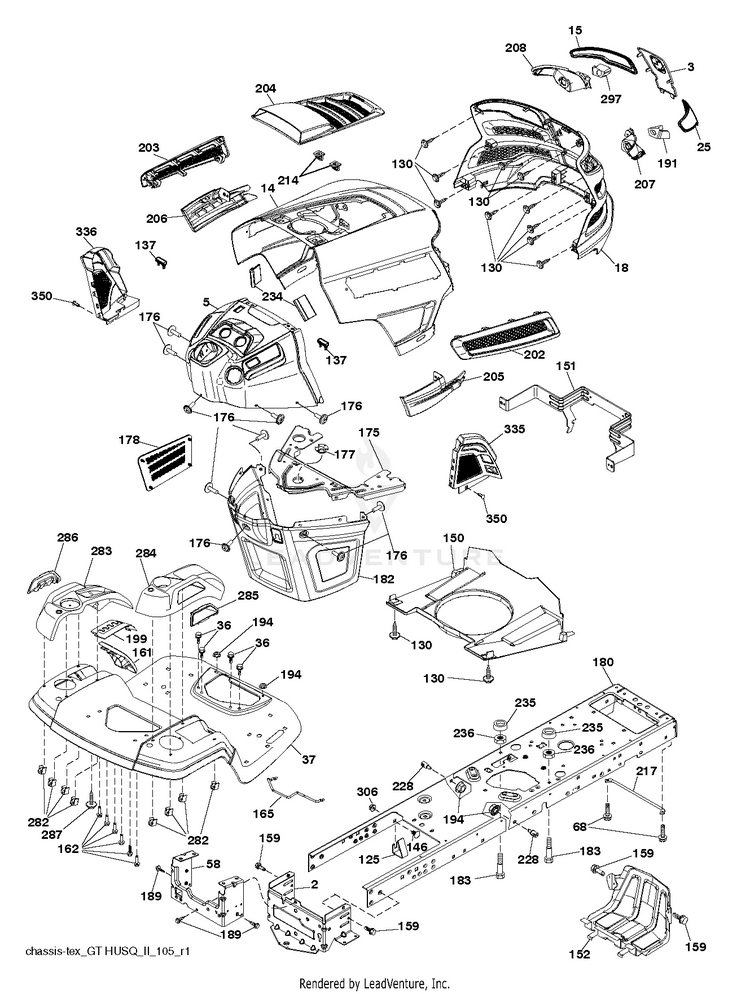

CHASSIS & ENCLOSURES

...
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
18
Grilles HUS-597247201
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
5
DASH.UPR.GT2.DUAL.RD.PTO.MC HUS-590748819
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
287
SCREW 1/4X20 HUS-817600406
...
350
CLIP.X-MAS.TREE HUS-532445143
...
15
LENS.HEADLIGHT.LH.GTII.2011 HUS-532439733
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
165
SUPPORT.TANK.REAR.B/TE HUS-532194330
...
194
GSPW Nuts HUS-596135701
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
137
BUMPER DASH HUS-532407590
...
284
CONSOLE.DECK.LIFT.R.SDFL.HUSQ HUS-532439861
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
285
CONSOLE INSERT RH RH HUS-532416315
...
183
Screws HUS-595305701
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
208
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH LH HUS-587464501
...
162
Screws HUS-596134101
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
25
LENS.HEADLIGHT.RH.GTII.2011 HUS-532443385
...
235
Spacers HUS-596564201
...
2
DRAWBAR.LOWER.2PC.18/22 HUS-532412282
...
- -
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
130
Screws HUS-596321701
...
161
WINDOW.FUEL.LT.HUSQ.TEX.498 HUS-532439781
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
191
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK LH HUS-532416317
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
207
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH RH HUS-587464801
...
125
CLIP.FUEL.LINE HUS-581684801
...
297
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
217
ROD.PIVOT.HOOD HUS-532409167
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
177
BUSHING, STEERING HUS-532195227
...
68
Screws HUS-596030701
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
37
FENDER.TLT.FS.W/CPH/FW/RSF.ORN HUS-532423694
...
283
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
