Husqvarna YT1942 - 96043002501 (2008-04) Riding Tractor

Model: YT1942 - 96043002501 (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

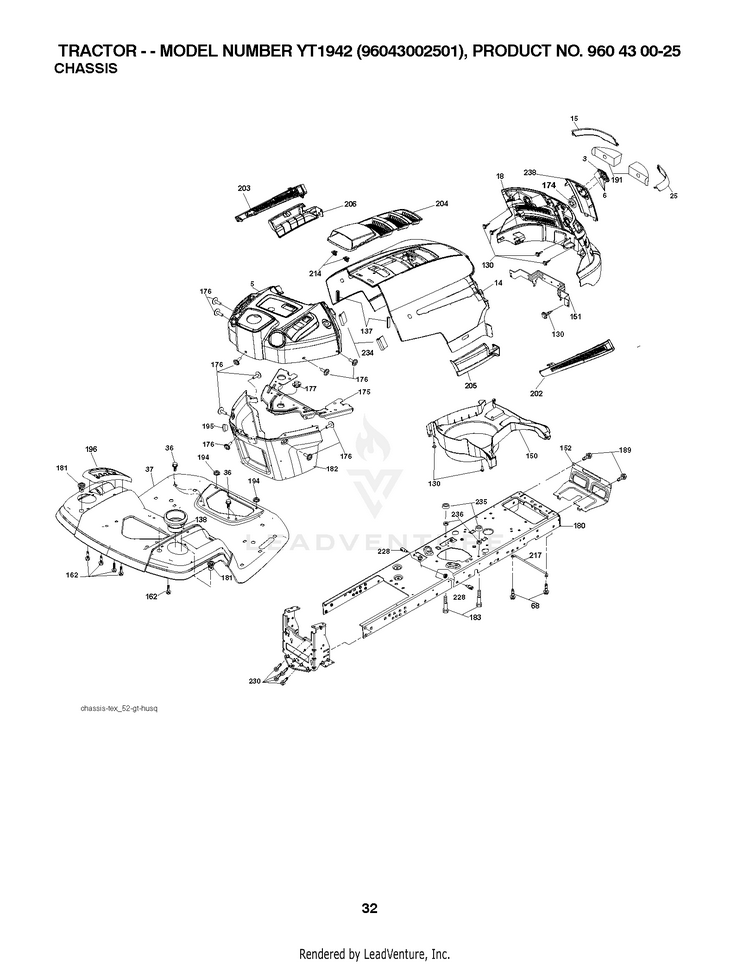

CHASSIS / FRAME

...
...
162
Screws HUS-596134101
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
5
SUBASM.DASH.UPPER.W/BUMPER HUS-532438964
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
150
DUCT.AIR. HUS-532407537
...
6
IS ITO HUS-532404883
...
14
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
152
SHIELD.BROWNING/DEBRIS HUS-532194329
...
191
INSERT REFLECTIVE HUS-532406665
...
177
BUSHING STEERING HUS-532195228
...
238
TRIM.HUSQ LT.668 HUS-532407881
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
37
FENDER.TLT.FS.W/CUPHLD.ORANGE HUS-532441266
...
36
SCREW, 3/8-16X3/4 HUS-817000612
...
18
ASM.GRILLE HUSQVARNA.LT.498 HUS-532439421
...
196
CONSOLE.ASM.DECKLFT.BL/RBT.TLT HUS-532414579
...
151
BRACKET PIVOT HUS-532407807
...
235
Spacers HUS-596564201
...
68
Screws HUS-596030701
...
182
DASH LOWER HUS-532198917
...
15
LENS.HUSQVARNA LT.LH LH HUS-532406664
...
230
SHOULDER BOLT 5/16-18TT HUS-532170165
...
202
VENT SIDE HOOD RH HUS-532406671
...
138
HOLDER.CUP.LT.GREY HUS-532439747
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
217
ROD.PIVOT.HOOD HUS-532409167
...
203
VENT.SIDE.HUSQVARNA.LT.RT LH HUS-532441342
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
204
Vent Top Hood HUS-532411786
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
206
SKIRT.SIDE.HUSQVARNA.LT.LEFT LH HUS-532441345
...
25
LENS.HUSQVARNA LT.RH RH HUS-532406663
...
205
SKIRT.SIDE.HUSQVARNA.LT.RH.GRE RH HUS-532406668
...
183
Screws HUS-595305701
...
137
BUMPER DASH HUS-532407590
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
194
GSPW Nuts HUS-596135701
...
130
Screws HUS-596321701
...
2
DRAWBAR.1PC.NSTL HUS-532194263
...
195
PLUG.TEX.DASH.SVC.MINDER.GREY HUS-532439976
...
175
CROSSMEMBER HUS-532199472
