Husqvarna YT1942 - 96043002500 (2008-04) Riding Tractor

Model: YT1942 - 96043002500 (2008-04)

Back To Assemblies

Save Part Not Listed?
product name

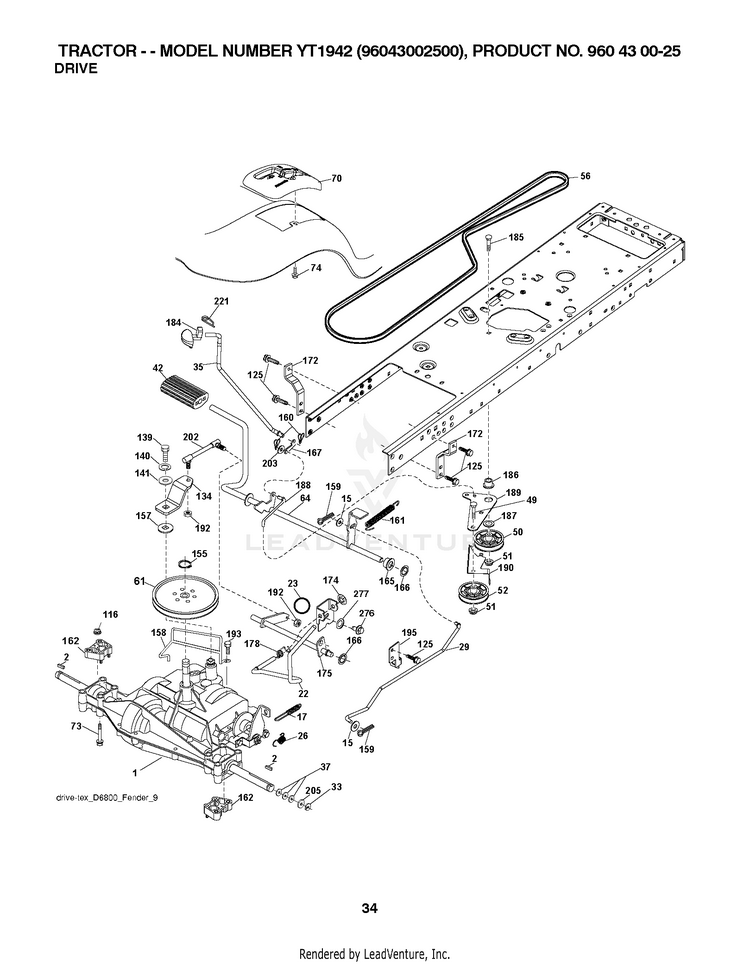

DRIVE

...
...
172
SERVICE KIT STRAP STRAP.TRQ.LH LH HUS-531153701
...
205
WASHER HUS-532121748
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
158
Keepers HUS-593853501
...
74
Screws HUS-596134101
...
42
PAD, FOOT PEDAL HUS-510089501
...
166
NUT.PUSH.625 HUS-532429164
...
22
ROD.SHIFT.FENDER.TLT.2006 HUS-532197660
...
195
BRKT.ROD.BRAKE.PEERLES HUS-532197332
...
141
Washers HUS-596039801
...
56
V-BELT.TRACTOR.DRIVE.P HUS-532194346
...
33
E-RING LT HUS-812000001
...
159
Pins HUS-596029501
...
26
SPRING.BRAKE.RTN.GR.DR HUS-532197455
...
29
Rods HUS-593874901
...
157
WASH-SHFT PLT LT HUS-532105701
...
175
SHAFT.ASM.SHIFT. HUS-532198981
...
37
WASHER HUS-532121749
...
17
SPRING.BRAKE.PEERLESS.TEX HUS-532197297
...
185
Bolts HUS-596435101
...
139
Bolts HUS-596136601
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
165
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
193
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
2
SQUARE KEY HUS-532123583
...
140
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
202
LINK.TRANSAXLE.D6800.18/20"TEX HUS-532199589
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
161
SPRING, RETURN LT HUS-532105709
...
277
Washers HUS-596135201
...
35
Rods HUS-596874801
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
276
Bolts HUS-596238601
...
155
RETAINING RING LT HUS-812000028
...
160
GSPW Retainers HUS-596029401
...
23
KNOB T (1/2-HOLE) HUS-532106933
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
192
NUT LOCK CENTER 1/4 -28 FNTHD HUS-532150360
...
61
PULLEY TRANS HUS-532123666
...
186
SPACER.RETAINER HUS-532194321
...
49
Bolts HUS-596136201
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
225
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
174
NUT.PUSH.500.2006 HUS-532197289
...
187
Washers HUS-596135501
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
134
ARM.SHIFT. HUS-532402430
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
116
GSPW Nuts HUS-596135701
...
162
SPACER.TRANSAXLE.1" HUS-580457401
...
70
CONSOLE.SHIFT.STL.6SP.BLACK.T HUS-532411290
