Husqvarna YT190 - 954001982A (1995-03) Riding Tractor

Model: YT190 - 954001982A (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

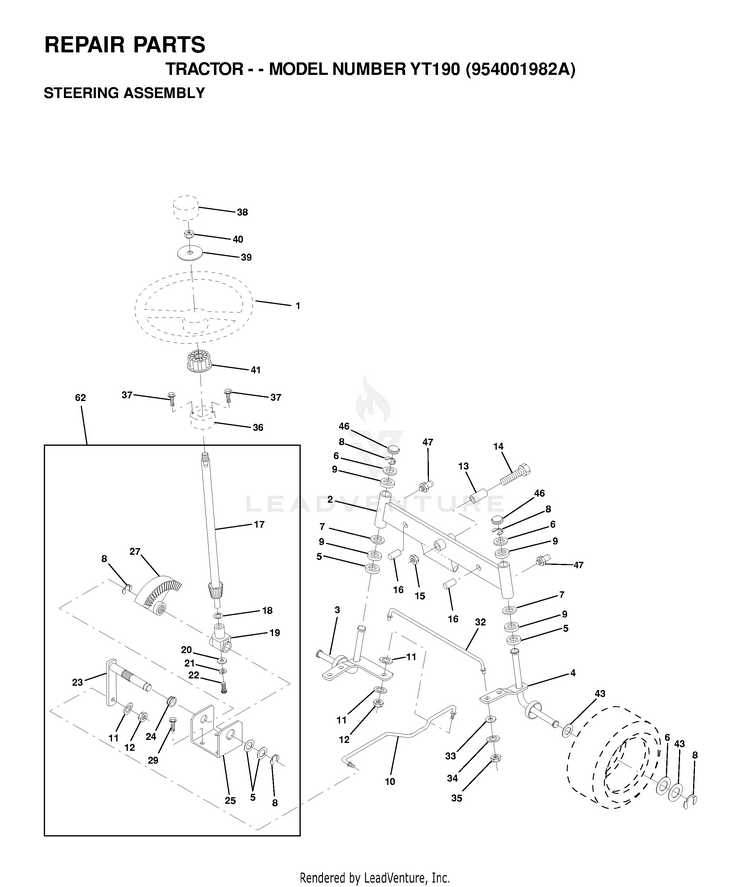

STEERING

...
...
1
STEERING WHEEL HUS-532124415
...
23
PITMAN SHAFT ASSY HUS-532156365
...
15
LOCKNUT M HUS-583612401
...
10
LINK.DRAG.SOL.BALL JT.20.064 HUS-532130468
...
39
WASHER HUS-532100712
...
37
SCREW HUS-817541008
...
19
STEERING SHAFT SUPPORT HUS-532160395
...
32
ROD.ASM.TIE.BALL.JOINT.NOVAN HUS-532170162
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
8
RING CLIP HUS-812000029
...
3
SPINDLE LH HUS-532135227
...
43
WASHER HUS-532121749
...
7
WASHER HUS-819272016
...
12
NUT HUS-873610600
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
33
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
36
BUSHING STRG 3/4 HUS-532145207
...
38
INSERT,STR WHEEL HUS-532124416
...
25
SERVICE KIT BRACKET BRKT HUS-531152201
...
13
KIT-AXLE HUS-532155134
...
2
AXLE ASSY HUS-532142033
...
21
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
22
SCREW.HX.WSH.HD HUS-532165857
...
6
WASHER HUS-532121748
...
16
AXLE PIN HUS-532132624
...
5
WASHER THRUST HUS-532006266
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
14
Bolt, Hex Head 5/8-11 x 3-1/2 HUS-874011056
...
62
KIT.STEER.AMS.YT HUS-532167904
...
4
SPINDLE RH HUS-532135228
...
34
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
27
GEAR.SECTOR HUS-532136874
...
17
STEERING SHAFT HUS-532156544
...
40
NUT.HEX.1/2-20 HUS-873940800
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
11
Washers HUS-596238701
...
18
THRUST WASHER HUS-532057079
...
20
Washers HUS-596582301
...
35
HUS-873610500
...
24
NYLINER T (7283A) HUS-532109816
...
29
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
