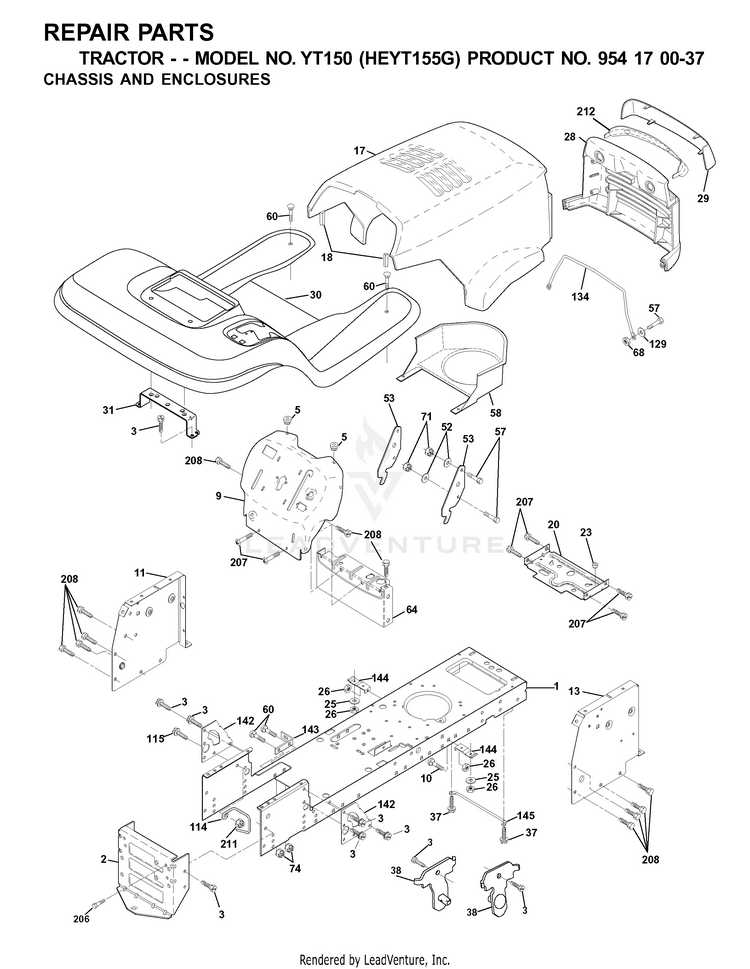

Husqvarna YT150 - HEYT155G (2001-01) Riding Tractor

Model: YT150 - HEYT155G (2001-01)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS & ENCLOSURES

...
...
74
Nuts HUS-596322601
...
64
DASH LOWER HUS-532154798
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
2
DRAWBAR, 12GA HUS-532176554
...
142
PLATE REINFORCEMENT HUS-532175702
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
211
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
18
BUMPER HOOD T HUS-532126938
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
10
Bolts HUS-596728201
...
145
ROD.PIVOT.HOOD HUS-532409167
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
57
Screws HUS-596230901
...
114
KEEPER.BELT.REAR.LH.STL.P930 HUS-584448901
...
17
HOOD - LT/YT HUS-532156051
...
13
DASH PANEL RH HUS-532172108
...
26
Nuts HUS-596322601
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
1
CHASSIS HUS-532169830
...
37
Screws HUS-596030701
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
58
AIR DUCT P/L/LT HUS-532150127
...
134
ROD SUPPORT HOOD LT/PL HUS. HUS-532160219
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
30
FENDER W/OUT CUP HOLDER HUS-532192813
...
115
SCREW.3/8-16 HUS-817060620
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
71
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
212
INSERT LENS REFLECTOR HUS-532156195
...
9
DASH HUS-532168336
...
129
Washers HUS-596582301
...
- -
PLUG BUTTON T HUS-532005479
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
52
Washers HUS-596135301
...
25
GSPH HUS-596134901
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
144
BRKT, FOOT REST HUS-532175582
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
