Husqvarna YT150 - HEYT155G (2001-01) Riding Tractor

Model: YT150 - HEYT155G (2001-01)

Back To Assemblies

Save Part Not Listed?
product name

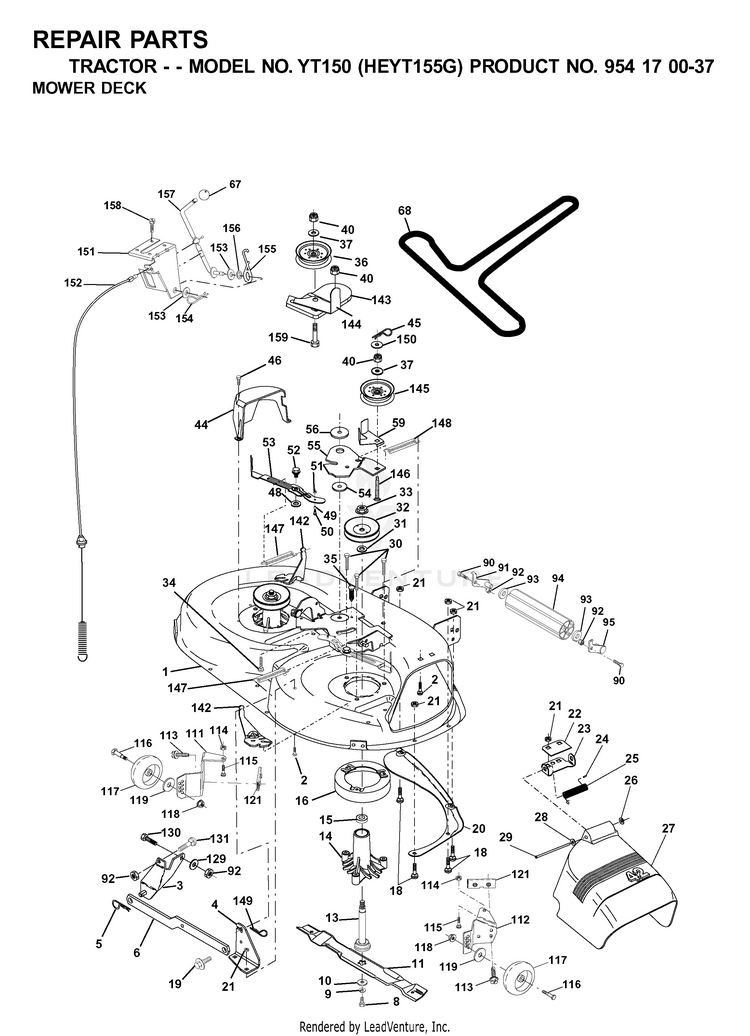

MOWER DECK / CUTTING DECK

...
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
143
SERVICE KIT BRACKET HUS-529844301
...
131
Bolts HUS-596728201
...
29
Rods HUS-595297001
...
48
WASHER HUS-532133944
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
1
DECK.SVC.42".BLACK HUS-532176027
...
90
Bolts HUS-596564401
...
159
Bolts HUS-596987501
...
119
GSPH HUS-596134901
...
49
ROLLER ASM CAM FOLLOWER HUS-532174284
...
4
BRACKET SWAY BAR 42" DECK HUS-532165460
...
13
KIT MANDREL W/NUT HUS-532137646
...
33
KIT.NUT.FLANGE HUS-532139729
...
68
BELT V SECONDARY HUS-532144959
...
116
Bolts HUS-596434402
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
10
WASHER.BLADE HUS-532140296
...
35
FASTENER.XMAS.TREE HUS-532133835
...
158
Bolts HUS-596582501
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
15
BEARING HUS-532110485
...
34
Bolts HUS-596136201
...
94
NOSE ROLLER HUS-532132264
...
18
Bolts HUS-596136401
...
11
42" HI-LIFT BLADE HUS-532138971
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
59
SERVICE KIT GUARD HUS-531165901
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
53
SERVICE KIT ARM BRAKE ASSY HUS-531168401
...
92
Nuts HUS-596322601
...
24
CAP-SLEEVE LT HUS-532105304
...
22
STIFFENER BRACKET HUS-532134753
...
151
BRACKET.CLUTCH.CABLE HUS-532169670
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
54
WASHER HUS-532178515
...
154
SPRING RETAINER HUS-532169675
...
146
BOLT CARRIAGE IDLER HUS-532173443
...
130
Bolts HUS-596564401
...
142
SERVICE KIT ARM SPRING BRAKE M HUS-529845801
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
36
CLG HUS-597025001
...
93
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
45
RETAINER M HUS-532004497
...
40
Nuts HUS-596322601
...
19
BOLT SHD 5/16-18 HUS-532132827
...
- -
SERVICE DECK KIT 42" NON-TEX HUS-548102301
...
9
Washers HUS-596238701
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
117
WHEEL.GAUGE.STANDARD HUS-532165746
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
147
SPRING HUS-532179748
...
113
Screw Tapping 5/16-18 Unc HUS-817060514
...
51
LOCKNUT HUS-532069180
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
153
Washers HUS-596140201
...
155
SPRING RETENTION LEVER HUS-532169671
...
27
SHIELD.DEFLECTOR.MOWER.42".BLK HUS-532130968
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
114
Hardware HUS-596040501
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
157
ROD CLUTCH CABLE 3/8" HUS-532169669
...
150
Washers HUS-596204201
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
145
PULLEY.IDLER.FLAT.PLATED HUS-532173437
...
121
BRACKET.EXTRUDED.GAGE.WHEEL HUS-532143723
...
26
NUT PUSH M HUS-532110452
...
152
KIT.CLUTCH.CABLE HUS-532175067
...
118
Nuts HUS-596322601
...
- -
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
32
PULLEY MANDREL HUS-532173436
...
44
GUARD MANDREL LH BLACK HUS-532140088
...
156
SPACER.CLUTCH.CABLE HUS-532169672
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
5
RETAINER-SPRNG RB HUS-532124670
...
55
SERVICE KIT ARM ARM IDLER 42" HUS-531166601
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
8
BLADE BOLT HUS-532850857
...
50
BOLT HUS-532131340
...
2
GSPW Bolts HUS-595901601
...
144
KEEPER BELT 42" CLUTCH HUS-532173441
...
25
SPRING TORSION HUS-532123713
...
21
Hardware HUS-596040501
...
148
IDLER RETURN SPRING HUS-532169022
...
129
GSPH HUS-596134901
...
23
SERVICE KIT BRKT HUS-529845901
...
52
BOLT.SHOULDER.5/16-18 HUS-532139888
