Husqvarna YT150 - HEYT155B (1998-12) Riding Tractor

Model: YT150 - HEYT155B (1998-12)

Back To Assemblies

Save Part Not Listed?
product name

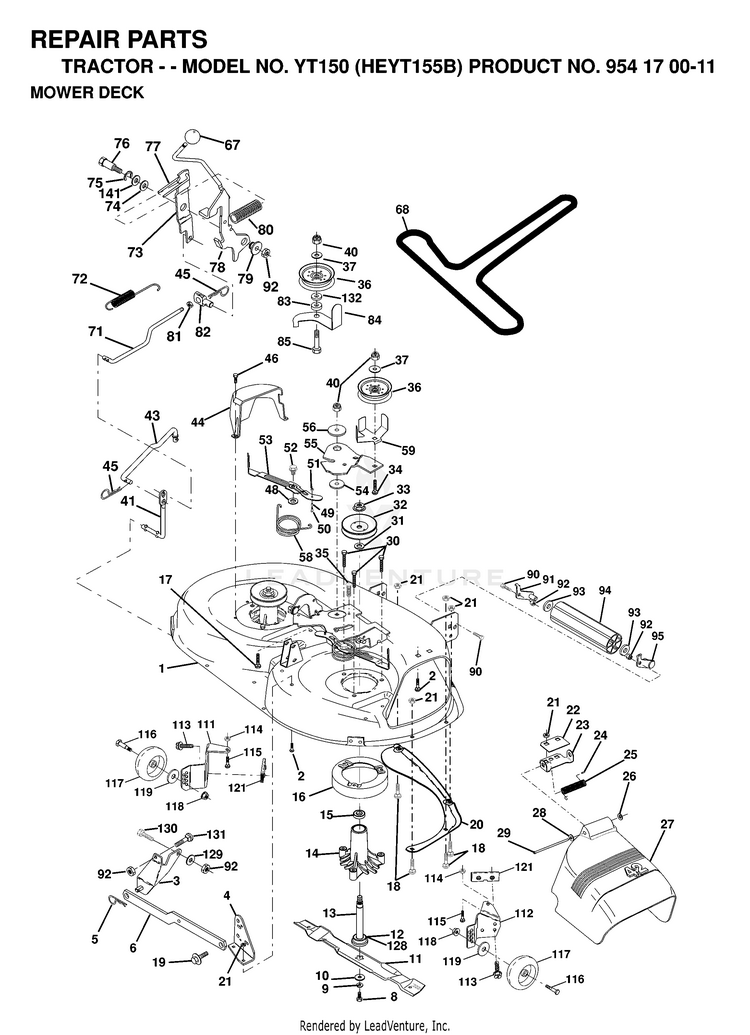

MOWER DECK / CUTTING DECK

...
...
21
Hardware HUS-596040501
...
128
WASHER FELT HUS-532153390
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
22
STIFFENER BRACKET HUS-532134753
...
90
Bolts HUS-596564401
...
51
LOCKNUT HUS-532069180
...
68
BELT HUS-531005086
...
40
Nuts HUS-596322601
...
15
BEARING HUS-532110485
...
17
Bolts HUS-596987501
...
13
KIT MANDREL W/NUT HUS-532137646
...
24
CAP-SLEEVE LT HUS-532105304
...
74
WASHER HUS-532121748
...
8
BLADE BOLT HUS-532850857
...
45
RETAINER M HUS-532004497
...
84
SERVICE KIT BELT KEEPER HUS-531150901
...
72
RETURN SPRING HUS-532131870
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
33
KIT.NUT.FLANGE HUS-532139729
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
82
TRUNNION.ADJUSTABLE.3/8-16 HUS-532142028
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
81
NUT.HEX.3/8-16UNC HUS-873220600
...
54
WASHER HUS-532178515
...
36
CLG HUS-597025001
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
83
WASHER HUS-532120958
...
67
KNOB.CONTROL.7/16 HUS-532162132
...
129
GSPH HUS-596134901
...
73
ARM CLUTCH SECONDARY HUS-532127847
...
1
DECK SVC 42" TP HUS-532176031
...
2
GSPW Bolts HUS-595901601
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
37
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
118
Nuts HUS-596322601
...
92
Nuts HUS-596322601
...
49
ROLLER ASM CAM FOLLOWER HUS-532174284
...
76
BOLT HUS-532128903
...
75
RING CLIP HUS-812000029
...
113
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
- -
DECK.ASM.SVC.42".MECH.T-PATH HUS-532164963
...
132
Washer 13/32 x 1-3/8 x 13 Ga. HUS-819132203
...
93
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
23
SERVICE KIT BRKT HUS-529845901
...
43
SERVICE.KIT CLUTCH ROD CLUTCH HUS-529842801
...
94
NOSE ROLLER HUS-532132264
...
77
KEEPER SPRING HUS-532127845
...
119
GSPH HUS-596134901
...
55
SERVICE KIT ARM ARM IDLER 42" HUS-531166601
...
48
WASHER HUS-532133944
...
26
NUT PUSH M HUS-532110452
...
79
BUSHING.FLANGE.E-RING.GROOVE HUS-532127498
...
18
Bolts HUS-596136401
...
141
WASHER THRUST HUS-532006266
...
121
BRACKET.EXTRUDED.GAGE.WHEEL HUS-532143723
...
78
CLUTCH LEVER ASSY HUS-532160570
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
9
Washers HUS-596238701
...
131
Bolts HUS-596728201
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
32
PULLEY MANDREL HUS-532173436
...
5
RETAINER-SPRNG RB HUS-532124670
...
116
Bolts HUS-596434404
...
11
42" MULCH BLADE HUS-594892701
...
58
SPRING HUS-532140086
...
34
Bolts HUS-596136201
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
71
SERVICE KIT CLUTCH ROD, CLUTCH HUS-531166401
...
52
BOLT.SHOULDER.5/16-18 HUS-532139888
...
- -
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
50
BOLT HUS-532131340
...
85
BOLT CARRIAGE HUS-872110618
...
19
BOLT SHD 5/16-18 HUS-532132827
...
4
BRKT DECK SW BAR HUS-532138440
...
27
SHIELD.DEFLECTOR.MOWER.42".BLK HUS-532130968
...
44
GUARD MANDREL LH BLACK HUS-532140088
...
117
WHEEL GAGE DONUT HUS-532133957
...
35
FASTENER.XMAS.TREE HUS-532133835
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
10
WASHER.BLADE HUS-532140296
...
25
SPRING TORSION HUS-532123713
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
114
Hardware HUS-596040501
...
53
SERVICE KIT ARM BRAKE ASSY HUS-531168401
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
41
PIVOT ROD HUS-532133551
...
80
SPRING-CLUTCH (2 2 PW01) HUS-532153701
...
59
SERVICE KIT GUARD HUS-531165901
...
29
Rods HUS-595297001
...
130
Bolts HUS-596564401
