Husqvarna YT150 - HCYT150B (1996-04) Riding Tractor

Model: YT150 - HCYT150B (1996-04)

Back To Assemblies

Save Part Not Listed?
product name

TRANSMISSION

...
...
11
SHIM.KIT.DANA.4689 HUS-532134793
...
19
BEARING, FLANGE LT HUS-532105911
...
67
SCREW, SELF TAPPING, LARGE HUS-532134799
...
65
JAW BRAKE HUS-532164670
...
50
GEAR, SPUR 31 TEETH HUS-532105937
...
38
ASSM GEAR COMB T NLA HUS-532110079
...
4
SPRING, DETENT HUS-532105904
...
43
SHIM HUS-532134394
...
63
BRAKE DISC T HUS-532007294
...
30
GEAR, SPUR 35 TEETH HUS-532142681
...
54
KIT.AXLE.LH.4997.DANA HUS-532154658
...
15
ASSY, KIT INPUT SHAFT HUS-532106846
...
68
LEVER ACTUATOR HUS-532108992
...
8
PUCK, FRICTION HUS-532120951
...
55
GEAR KIT HUS-532169651
...
24
SHAFT INTER 5404 HUS-532143673
...
52
NEOPRENE.WASHER.DANA HUS-532134401
...
20
GEAR SPUR 14 TTH HUS-532142675
...
56
RING, RETAINING HUS-532105941
...
60
Axle, R.H. HUS-532120475
...
70
BRACKET, ANTI ROTATION HUS-532120956
...
37
SPACER HUS-532108978
...
39
SHAFT IDLER HUS-532124639
...
13
WASHER.PLAIN..632X1.38X.046 HUS-532120415
...
7
BOOT, SHIFTER HUS-532134399
...
49
GEAR, SPUR 28 TEETH HUS-532120408
...
1
IGNITION HARNESS HUS-532132671
...
3
DETENT, BALL HUS-532068003
...
62
PUCK, FRICTION HUS-532120961
...
42
GEAR, SPUR 42T YT HUS-532106605
...
57
GEAR LT HUS-532110071
...
29
GEAR, SPUR 37 TEETH HUS-532142677
...
22
ASSEMBLY KIT, CLUTCH KEYS HUS-532138236
...
71
HUS-873610500
...
64
SPACER LT HUS-532108989
...
69
WASHER, PLAIN .321 X 1.00X.055 HUS-532108996
...
31
GEAR SPUR 30T HUS-583670301
...
23
BEARING.FLANGE (DANA 5511) HUS-532148268
...
26
RING, RETAINING LT HUS-532105916
...
16
INPUT.SHAFT.BEVEL.6205 HUS-532167148
...
18
CHAIN 24 PITCH LT HUS-532105910
...
27
SPROCKET 18T HUS-532120470
...
59
GEAR KIT HUS-532169651
...
61
LOWER HOUSING HUS-532142680
...
36
WASHER 025 HUS-532002232
...
6
SHIFTER KIT HUS-532134788
...
32
GEAR, SPUR 25 TEETH HUS-532108980
...
25
KEY, WOODRUFF, #61 HUS-532002244
...
10
Ring, Retaining HUS-532002225
...
72
Seal, Oil HUS-532148269
...
34
GEAR HUS-532134796
...
53
WASHER, PLAIN .758 X 1.25X.031 HUS-532002264
...
73
SHELL, GREASE #50416 HUS-532126976
...
44
SHAFT, DRIVE HUS-532120473
...
41
SPROCKET 9T LT HUS-532105928
...
33
GEAR, SPUR 22 TEETH HUS-532120406
...
14
KEY.WOODRUFF.DANA HUS-532142674
...
12
PLUG PLASTIC HUS-532143679
...
17
RING RETAINING HUS-532105909
...
66
PIN HUS-532120954

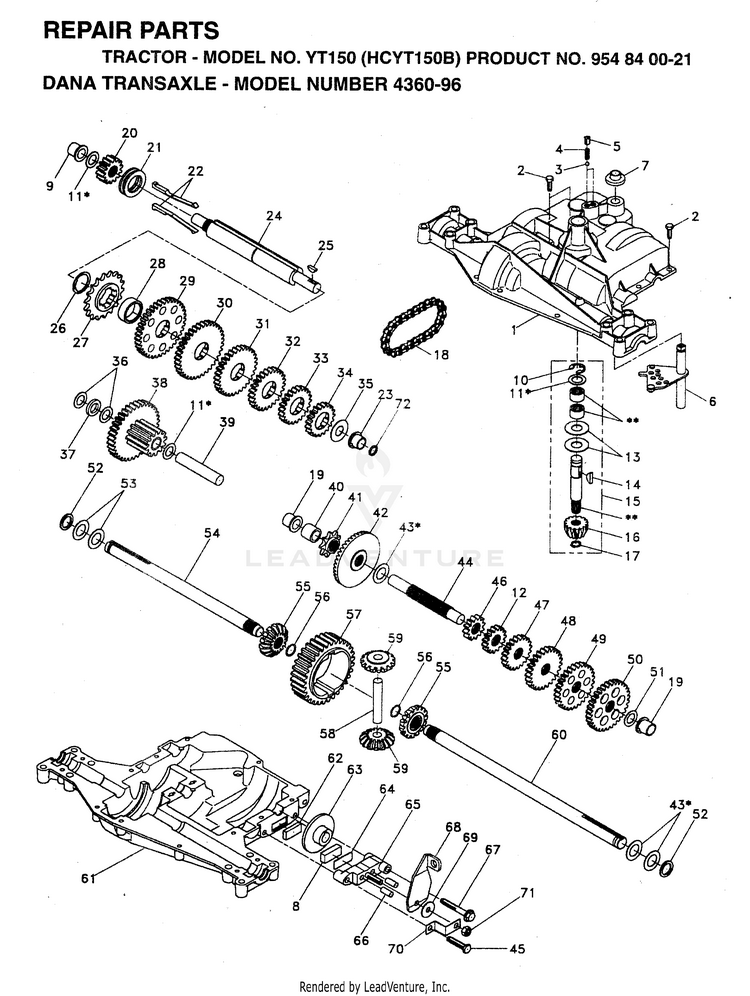

Schematic Image Zoomed
